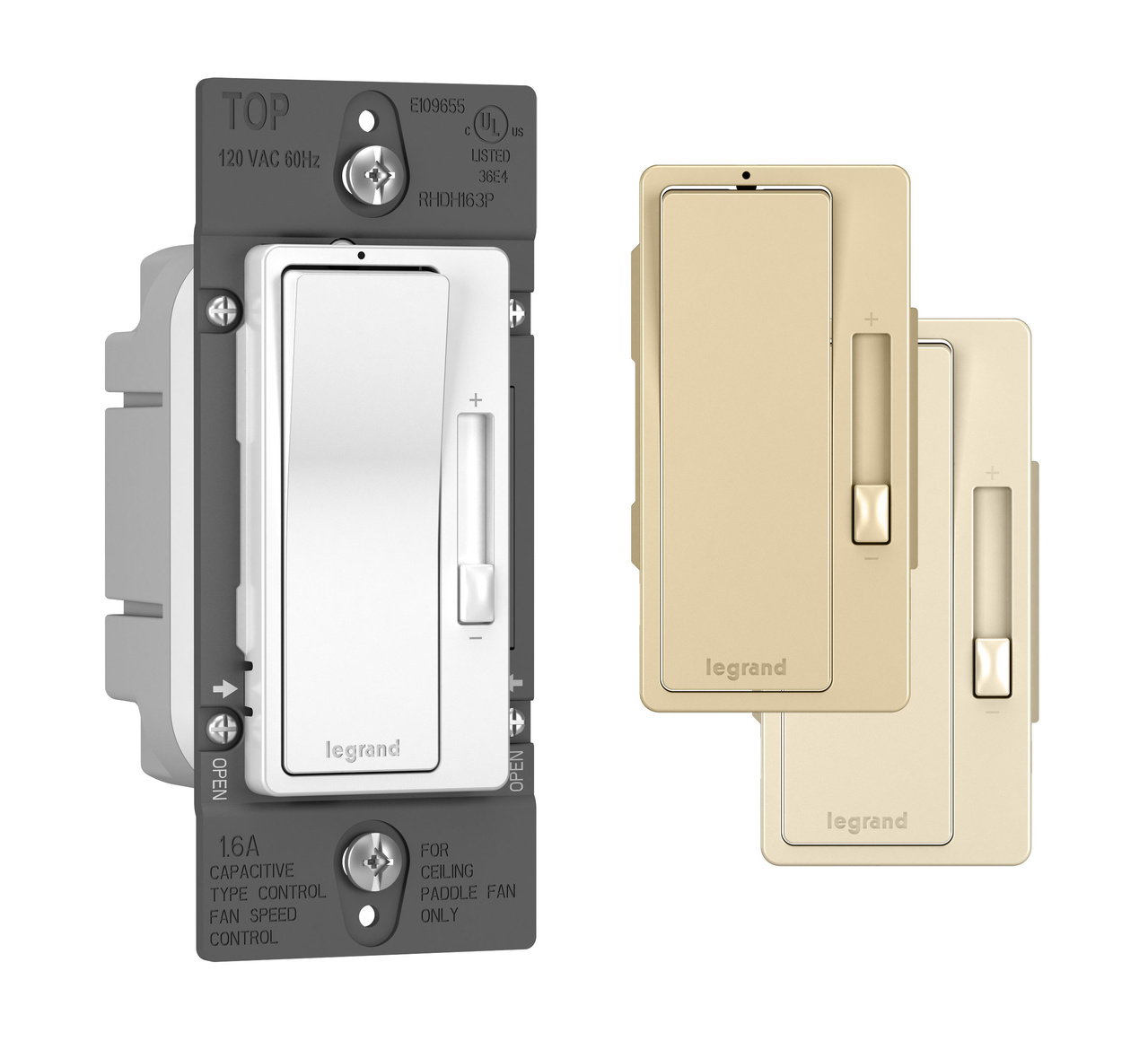

Product image for Pass & Seymour RHDH163PTC Radiant DeHummer Fan Control, 1.6A 120V - Tri-Color
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour RHDH163PTC Radiant DeHummer Fan Control, 1.6A 120V - Tri-Color

Manufacturer: Legrand Pass & Seymour | Catalog # RHDH163PTC | Codale Part # 4536106
$78.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. radiant® Screwless Wall Plate not included.

Technical Information

Action
Paddle
Amperage
15 Amp
Applications
For Residential Use
Connection Type
Back Wired
Contact Rating
120 VAC
Enclosure
Thermoplastic
Load Rating
120V 1.6A (FAN MOTOR)
Load Type
AC Fan Motor
Material
Thermoplastic
Mounting Type
Surface
Number of Gangs
1.0
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Size
Depth 1.25" x Width 1.75" x Height 4.25"
Standard
CSA C22.2 No. 85,UL E23018,cULus
Switch Type
Paddle
Tc Connection
Back & Side Wired
Temperature Rating
0 degrees C to 40 degrees C
Type
1-Gang, 3-Speed, 3-Way
Voltage
120 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007053418
Color
Ivory,Light Almond,White
Environmental Conditions
Indoor Only
Finish
Matte
Product UPC
78500705341

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Designed to virtually eliminate the motor's hum for quieter use.
  • Installs easily in place of a standard light or fan control switch. Rated for a max load of 1.6A.
  • Offers installation flexibility, working in both single-pole and 3-way applications.
  • Returns the fan to its previous level after a power failure.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • More color options available to fit any style.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
