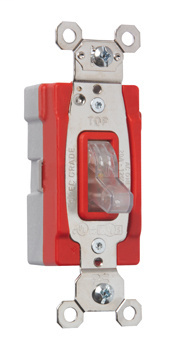

Pass & Seymour PT20AC1-CSL Single Pole Illuminated Toggle Switch, 20A 120/277V - Clear

Manufacturer: Legrand Pass & Seymour | Catalog # PT20AC1CSL | Codale Part # 4536170
$62.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Pole Illuminated Toggle Switch, 20amp 120/277volt, ClearFor detailed PlugTail information, visit our PlugTail Headquarters.

Technical Information

Action
DPDT
Actuator
Toggle Switch
Amperage
20 Amp
Applications
Commercial,Industrial
Contact Rating
120 V
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
2 Pole
Number of Switches
1
Size
4.6x2.5x2.4
Switch Type
Toggle
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007108545
Color
Clear
Finish
Matte
Product Series
PlugTail
Product UPC
78500710854
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Warranty Length
1 yr
Width
1.320 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece nickel-plated mounting strap for superior corrosion resistance
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Large brass contacts snugly terminate on device blade terminals. Audible snapping latch assures connection, allows release.
  • Polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Glass-reinforced nylon back body for durability and strength.
  • Heavy-duty bumpers for quiet, smooth operation.
  • Shallow design for easier installation.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
