Wiremold XB814 Outdoor Ground Box

Manufacturer: Legrand Wiremold | Catalog # XB814 | Codale Part # 4536266
$420.03/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1
The single service 2-gang Outdoor Ground Box is made from a UV rated nonmetallic material and has been designed to withstand the harsh outdoor environments. The box can accept up to (2) 1 1/4'' trade size PVC conduit feeds. Boxes are designed to be installed separately or ganged together, for greater capacity and flexibility. They work with XB814 cover assemblies (sold separately).

Technical Information

Applications
For Outdoor Open Spaces Grass or Concrete or Pavers
Cable Entry
(2) 1-1/4 in Knockout
Material
Non-Metal
Mounting Type
Bury-In-Ground
NEMA Size
6P
Number of Gangs
2 Gang
Type
Assembled

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776187182
Color
Black
Construction
Assembled
Product Series
Outdoor Ground Box
Product UPC
78677618718

Dimensions

Height
10-3/4 Inch
Length
10-3/4 Inch
Width
16 in

Certifications and Compliance

Certifications
CULUS,ROHS
Country of Origin
China
Features
  • cUL Coming Soon
  • Air Pocket Design This innovative design traps and maintains an air pocket protecting the devices, plugs and connections from water, snow, and ice. Allow for safer operation year round.
  • UL listed to UL50E Type 6P (NEMA 6P) and IP68 requirements while in use Tested and listed by Underwriters Laboratories, Inc. to UL2996 and UL50E for use in the ground in all weather conditions.
  • ADA Compliant Meets all specifications for ADA guidelines.
  • Outdoor-Rated Construction UV and chemical-resistant F1 rated nonmetallic materials, allows the box to hold up for years to come.
  • Holds up to 5000 lbs Has an ANSI/SCTE 77 Tier 5 rating and can hold up to 5,000 lbs of load allowing for the occasional tractor or non-deliberate vehicular traffic.

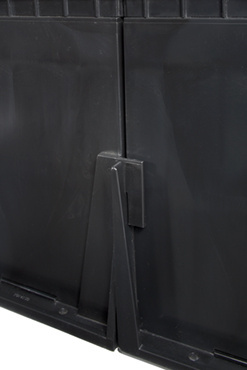

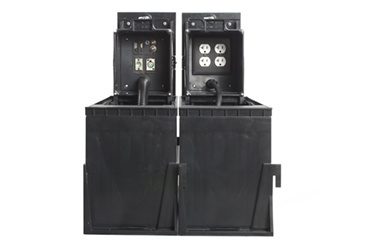

  • Modular design Boxes are designed to interlock allowing endless number of boxes in the same location. Provides service separation, everything in one location, and easier installation.

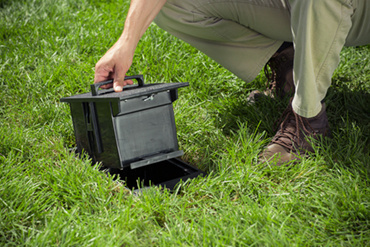

  • Flush to the Finished Ground Designed to be flush with any surface, grass, dirt, walkways, patios, etc.
Certifications
  • cULus Listed
  • RoHS Compliant
