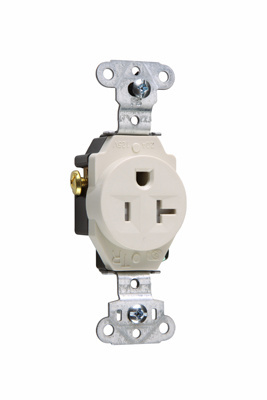

Pass & Seymour TR5351-LA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Face Tamper-Resistant Single Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # TR5351LA | Codale Part # 4536315
$29.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 20amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Grade
Commercial, Construction Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.296 L x 1.190 W x 3.28 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241952
Color
Light Almond
Product UPC
78500724195
UNSPSC
39121406

Dimensions

Depth
1.19 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • AC receptacles available in 15 and 20A, 125V.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
