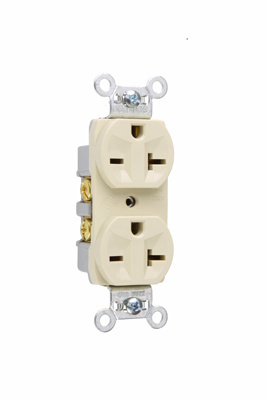

Product image for Pass & Seymour 5850-I Commercial Spec Grade Duplex Receptacle Side Wire 20A 250V - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour 5850-I Commercial Spec Grade Duplex Receptacle Side Wire 20A 250V - Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # 5850I | Codale Part # 4536343
$38.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 250volt, White

Technical Information

Amperage
20 Amp
Applications
Residential/Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Commercial
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.25x1.25x1.81
Type
Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007585001
Color
Ivory
Finish
Matte
Product UPC
78500758500
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
