Lutron DVFSQ-LFH-WH DIVA 3-SPEED LT SW

Manufacturer: Lutron Electronics | Catalog # DVFSQ-LFH-WH | Codale Part # 4536354
$48.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Fan control (top) Slide up to on/increase speed, down to decrease/off. 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan). Switch (bottom) Rocker switch turns light on/off.

Technical Information

Actuator
Rocker Switch
Amperage
1.5 Amp
Applications
Fan,Lighting
Connection Type
Wire Leads
Contact Configuration
N-O
Contact Rating
1.5 A
Enclosure
Plastic
Enclosure Material
Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
2.94 in
Standard
CUL,NOM,UL
Tc Connection
Wire Leads
Type
3-Way/Single-Pole,Fan/light Control
Voltage
120 Volt
Wattage
120 Watt

Manufacturer Information

Brand
Diva
Sub Brand
Diva

General Product Info

12-Digit UPC
784276226714
Color
White
Environmental Conditions
0 To 90% Humidity,Non-condensing
Finish
Gloss
Product UPC
78427622671

Certifications and Compliance

Country of Origin
China
Features
  • Includes (1) Diva Light/Fan switch; Gloss finish
  • No Neutral Required; 120V
  • Rated up to 1.5 Amp of indoor ceiling paddle fans and 120-Watt of LED/CFL's or 240-Watt of incandescent/halogen bulbs
  • One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
  • Single-Pole only
  • Wire-lead connections

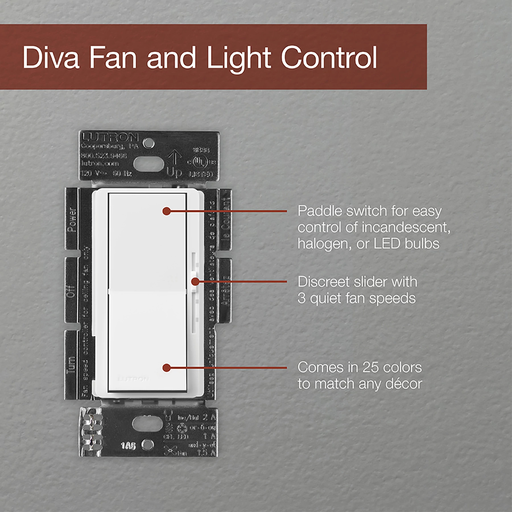

  • Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
  • Provides 3-quiet fan speeds for increased comfort
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Fan control (top) Slide up to on/increase speed, down to decrease/off
  • 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan)
  • Switch (bottom) Rocker switch turns light on/off.
Standards and Certifications
  • NOM
  • CULUS
  • UL
  • cUL
