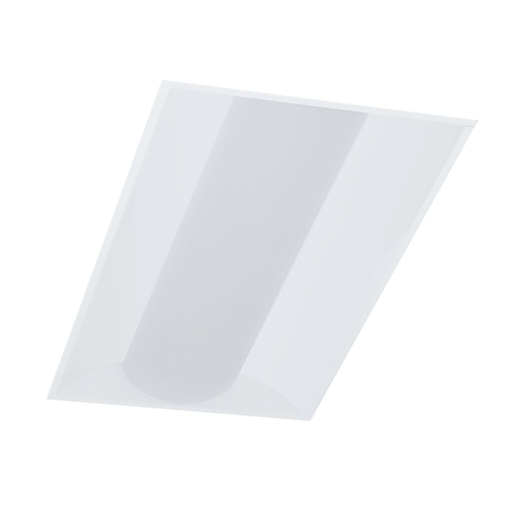

Current LCAT22-35LWG-EDU LED Troffer, 2X2, 35K, 0-10V Dimmer

Manufacturer: Current by GE | Catalog # LCAT22-35LWG-EDU | Codale Part # 4536421
$232.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
LCAT architectural LED troffer with a curved center lens, 2x2, Color Temperature: 3500 K, Lumen Output Category: low watt light output 2770 lmsWattage: 22 W, Mounting Type: Recessed, Driver type: 0-10V dimming, Voltage Rating: 120-277 VAC.

Technical Information

Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500 K
Lamp Type
LED
Light Source
LED
Lumens
2,500 Lumen
Material
Steel
Size
1 1/2 in
Type
Non-Reversing
Voltage
277 Volt
Wattage
22 Watt

Manufacturer Information

Brand
Columbia Lighting

General Product Info

12-Digit UPC
078531125905
Color
White
Finish
High Reflectivity Matte Paint
Product UPC
07853112590
Weight
15 lb

Dimensions

Height
4 Inch
Length
24 Inch
Warranty Length
5 yr
Width
24 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • High efficiency acrylic center lens features linear prisms for high performance without pixelation
  • Appropriate for offices, schools, medical, and public spaces
  • High performance reflector with matte white paint standard
  • 83 CRI standard or optional 90 CRI for color sensitive applications
  • 60,000 hour LEDs at L80 for reduced maintenance
  • LED modules and electrical accessible from below
  • QR code traceability
  • Compatible with Dual-Lite inverters
  • SpectraSync™ Color Tuning Technology available
  • NX Distributed Intelligence™ wired and wireless controls capability available
  • Air return option
  • DLC® (DesignLights Consortium) Qualified, with some Premium Qualified configurations - see www.designlights.org
  • Five year warranty (Terms and Conditions Apply)
