NSI ISPB2/0-2B POLARIS EDGE Conn 2/

Manufacturer: NSI Connectors & Lugs | Catalog # ISPB2/0-2B | Codale Part # 4536524

$72.71/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet

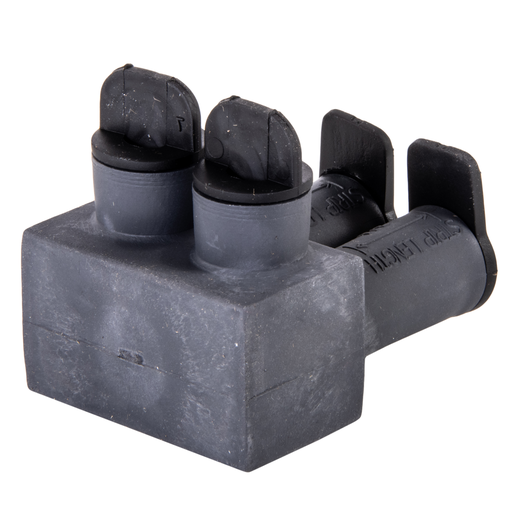

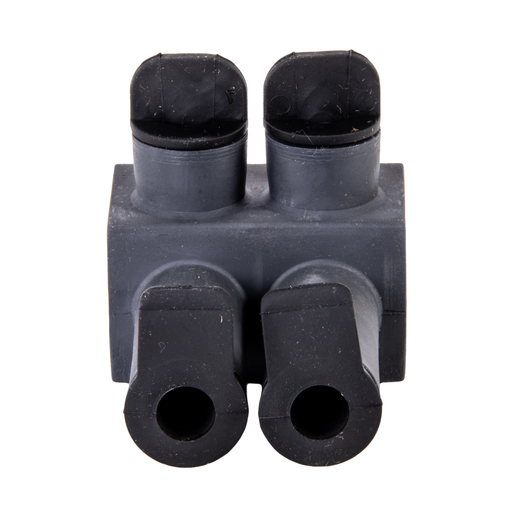

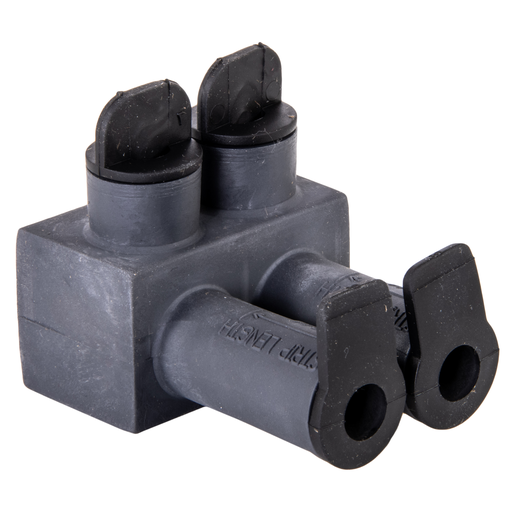

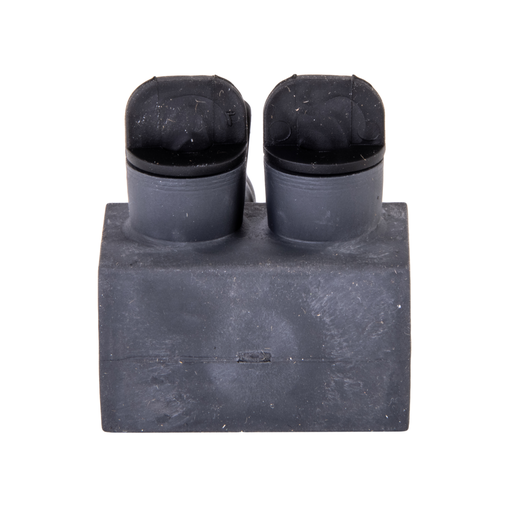

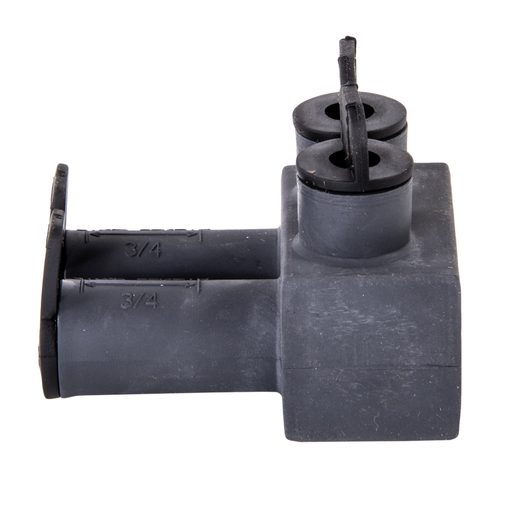

The Polaris ISPB2/0-2B Multi-Tap Direct Burial Single-Sided Entry Connector features 2 ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each single-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Rated for temporary submersion, wet or damp locations and direct burial applications. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL 486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.

Technical Information

Applications
Terminate Stranded Wire into European/Metric-Style Terminal Blocks
Material
Rubber
Number of Conductors
2
Number of Poles
1 Pole
Size
L=1.93 - W=2.65 - H=2.10 IN
Standard
CULus
Temperature Rating
90 degrees C
Type
Submersible Pedestal Connectors
Voltage
600 Volt
Wire Size
14-00 AWG
Wire Type
Class B & C

Manufacturer Information

Brand
Polaris
Sub Brand
Polaris EDGE

General Product Info

12-Digit UPC
662381800633
Color
Black
Environmental Conditions
< 90% Non-Condensing Relative Humidity
Finish
EPDM Rubber Insulated
Product UPC
66238180063
Weight
1.9 lb

Dimensions

Height
2.1 Inch
Length
1.93 Inch
Warranty Length
1 yr
Width
2.65 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • UL 486D
Additional Notes
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
