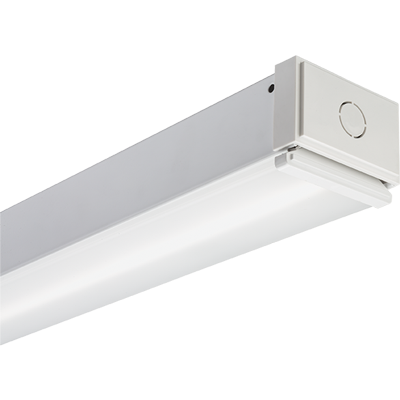

LITH CLX L48 5000LM SEF FDL MVOLT G

Manufacturer: Lithonia Lighting | Catalog # CLXL485000LMSEFFDLMVOLTGZ1035K80CRIWH | Codale Part # 4536661
$301.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

Technical Information

Aperture Size
4 ft
Applications
Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic Jumper Cab
Average Rated Life
100,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Acrylic
Lumens
5,000 Lumen
Material
Steel
Mounting Type
Pendant,Surface
Standard
CSA
Type
Strip Light
Voltage
120 Volt
Wattage
31.8 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191723774702
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
Strip Light
Product Type
Strip Light
Product UPC
19172377470
Shape
Rectangle
Weight
6.4 lb

Dimensions

Height
4 Inch
Length
50-1/2 Inch
Warranty Length
5 yr
Width
5 in

Certifications and Compliance

Country of Origin
Mexico
Standard
  • CSADLC Premium
  • DLC Standard
Features
  • Sleek, easy-to-install design of the CLX strip complements applications from retail to education to commercial office
  • Replaces 2-lamp 32WT8, 1-lamp 54W T5HO, 70W HID only using up to 35.4 watts
  • MVOLT and dimmable: LED strip lights have 0-10V dimming capability which allows you to control how much light is needed
  • Code compliant CSA certified to US and Canadian safety standards; damp location listed, DLC qualified
  • Funtions between 120 and 277 volt range and fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting ohardware
  • LEDs provided 80 color rendering index (CRI), 5,000 lumens at 3500K with a neutral white color temperture
  • Long lasting LEDs are designed to last 100,000 hours or 23 years when on everyday for 12 hours/day - drastically reducing time wasted changing light bulbs, 5 year limited warranty included
  • Emergency battery back-up not included in this version
  • Buy with confidence with a 5-year limited warranty
Mounting
  • Pendant
  • Surface
Application
  • Offices & Banks
  • Parking Garage
  • Retail
  • Warehouses
