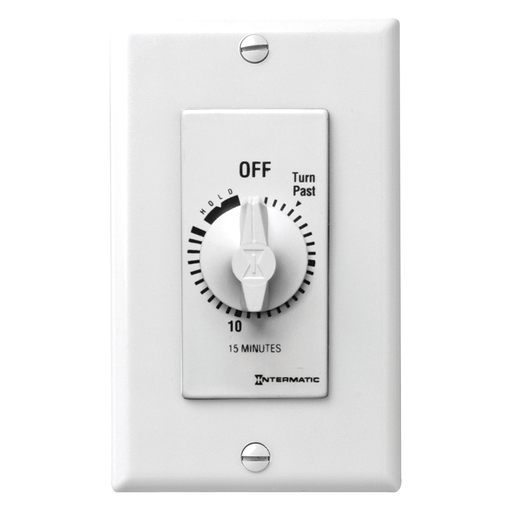

Intermatic FD15MHW 15 Minute 125 to 277 VAC 60 Hz SPST White Countdown Timer with 15 Minute Hold

Manufacturer: Intermatic | Catalog # FD15MHW | Codale Part # 4536837
$64.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Load Type
Back
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Configuration
In-Wall
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
Tc Connection
Teeter Type
Temperature Rating
40.0 degrees C
Type
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Voltage
277 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275185555
Color
White
Product Category
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product Type
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product UPC
07827518555
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
Tunisia

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • 15-Minute timer with hold
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
