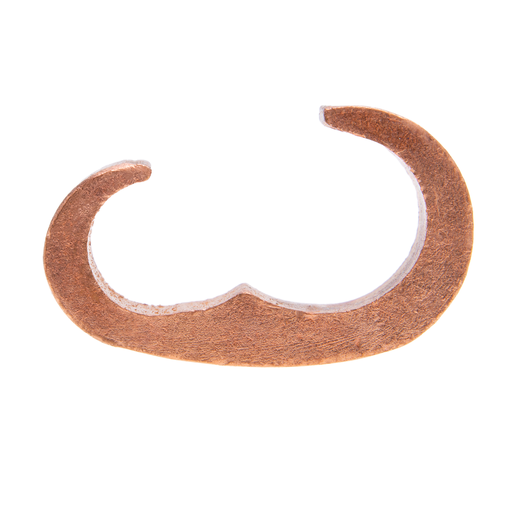

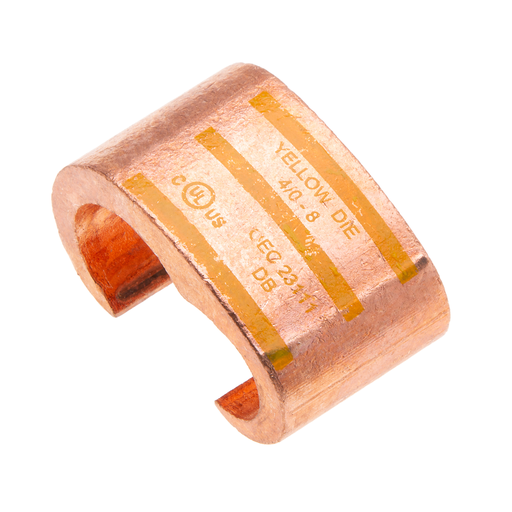

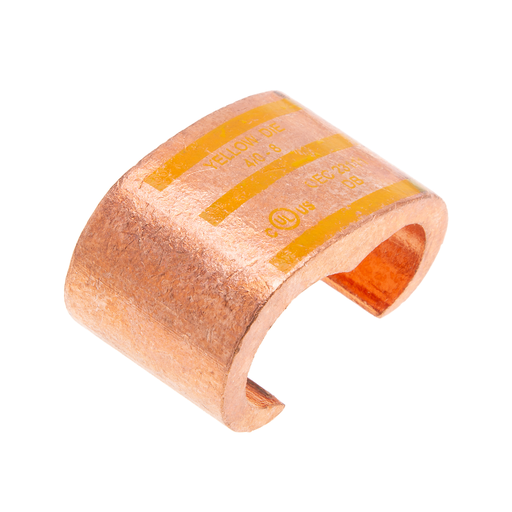

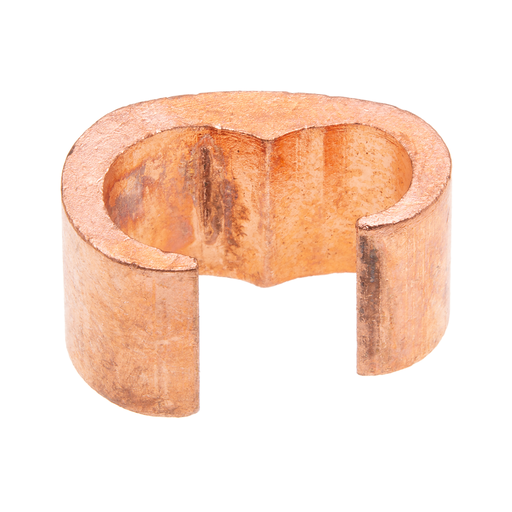

NSI CTH-111 1 to 1/4 AWG Wire Size Main Blue 25-Pack Copper Compression Connector C-Tap

Manufacturer: NSI Connectors & Lugs | Catalog # CTH-111 | Codale Part # 4537091
$53.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy Duty Copper C Tap Grounding Connector for 4/0 to 1 AWG APPLICATIONS: Copper "C" Taps ensure positive, all around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
4/0 AWG
Material
Copper
Max Temperature
194 degrees F
Size
4/0-8 AWG
Standard
UL486
Tap Size
8 AWG
Temperature Rating
90 degrees C
Type
C-Taps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381098108
Color
Blue
Environmental Conditions
90 degrees C
Finish
Copper
Product UPC
66238109810

Dimensions

Length
33 mm
Warranty Length
1 yr
Width
20 mm

Certifications and Compliance

Country of Origin
USA
Features
  • These taps ensure positive, all-around compression with low resistance and high pull-out values
  • Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system
  • Rated for 600V applications
  • Rated for CLASS B OR C BUILDING WIRE CU CABLE ONLY.
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A, UL 467
Additional Notes
  • FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88
