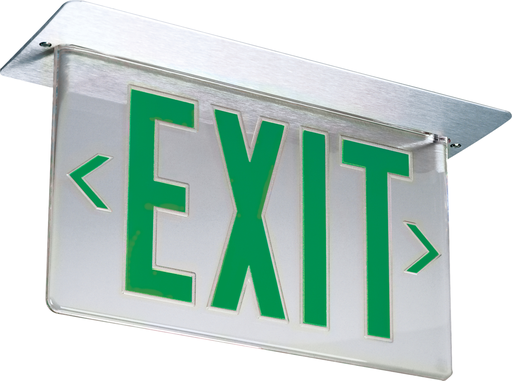

Product image for Lithonia LRP-2-GMR-DA-120/277-PNL Edge-Lit LED Exit Sign, Double Face, Green Lettering on Mirror Background, Double Face Arrows, 120/277V, AC Only, Ceiling or Back Mount, Brushed Aluminum Housing - Panel Assembly Only
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Lithonia LRP-2-GMR-DA-120/277-PNL Edge-Lit LED Exit Sign, Double Face, Green Lettering on Mirror Background, Double Face Arrows, 120/277V, AC Only, Ceiling or Back Mount, Brushed Aluminum Housing - Panel Assembly Only

Manufacturer: Lithonia Lighting | Catalog # LRP2GMRDA120/277PNL | Codale Part # 4537101
$829.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
LED Edge-Lit emergency exit panel assembly, Double face, Green with mirror separator, Double face, Dual voltage, Panel assembly only, SKU - 283559

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways,Sewers & Dams,Sports And Recreation,Transportation,Warehouses,Waters
Lamp Type
LED
Lens Material
Acrylic
Material
Acrylic
Mounting Type
Recessed
Number of Lamps
0
Power Source
Hardwired
Standard
NFPA 101,UL
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
2 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
784231092699
Color
Silver
Environmental Conditions
Indoor
Finish
Brushed
Fixture Type
Emergency Exit Unit (aka Combo), Exit Sign
Letter Color
Green
Product Type
Emergency Exit Sign
Product UPC
78423109269
Shape
Rectangle
Weight
6 lb

Dimensions

Height
5-1/2 Inch
Length
16-1/2 Inch
Warranty Length
5 yr
Width
10.5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Though undeniably elegant, Precise is engineered to meet your rigorous criteria for exit signs. Acrylic panels are molded and ultrasonically welded in a unique wedge shape that eliminates rough edges and visible hardware. In addition to this aesthetic advantage, Precise provides superior performance with energy-saving LED and fluorescent lamps, uniform illumination, reliable operation and crystal-clear visibility.
  • PANELS: Injection-molded acrylic panels, ultrasonically welded to eliminate visible hardware
  • LIFE: The typical life of the exit LED lamp is 10 years
  • EMERGENCY OPERATION: Sealed maintenance-free nickel-cadmium battery that delivers 90-minute operation
  • LISTINGS: UL listed; Non-IC recessed mounting; Meets UL 924, NFPA 101 (current Life Safety Code), NEC, FCC Title 47, Part 15, Subpart B and OSHA illumination standards
  • INSTALL: Recessed mount: rough-in section for back, ceiling or end mounting; Fits into minimum wall or ceiling opening 13-5/8 in L x 4-1/2 in W x 3-1/8 in D
  • CONNECTION: Plug-in wire connections and self-captive mounting screws for mounting panel/trim to rough-in section
  • INTENDED USE: Suitable for architectural applications where aesthetics and superior performance are required
  • BATTERY BACK-UP: Sealed, maintenance-free nickel cadmium battery delivers 90 minutes capacity to lamp; Constant-current series charger, 24-hour recharge after 90-minute discharge
  • WARRANTY: 5-Year Limited Warranty, including lamps
