LIT WPD WH Switch

Manufacturer: Lithonia Lighting | Catalog # WPDWH | Codale Part # 4537138
$76.35 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

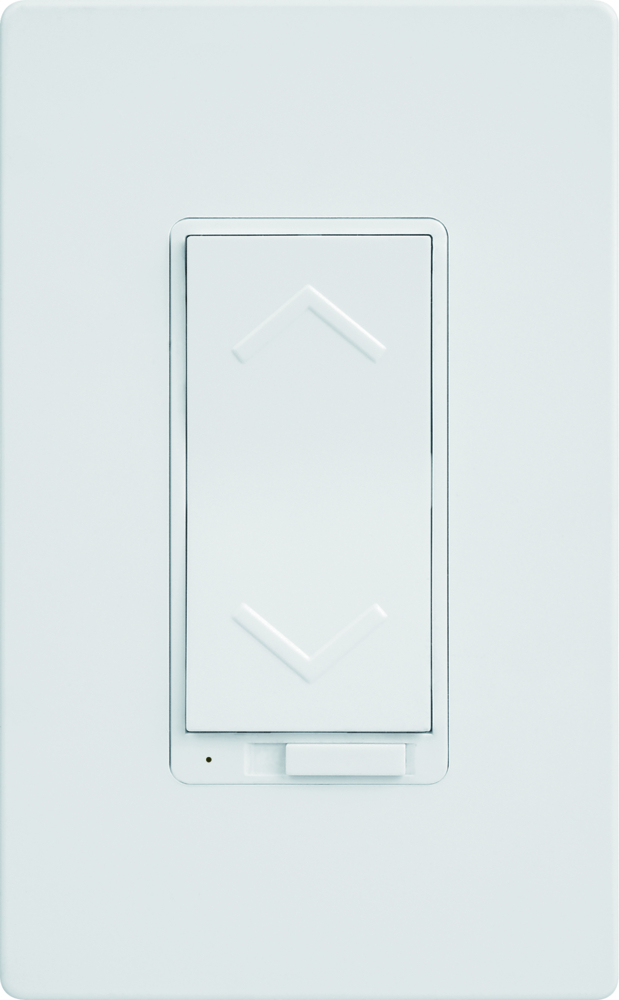

The Sensor Switch WPD Forward-Phase Dimmer Switch is a commercial- and residential-grade paddle dimmer that works with most dimmable incandescent, LED and CFL lamp fixtures. Easy configuration allows the user or installer to effortlessly develop energy saving strategies by setting high and low brightness levels or returning to its default state when desired.

Technical Information

Amperage
2.00
Lamp Life
87,600 hr
Mounting Type
Surface
Type
Switch
Voltage
120 Volt

Manufacturer Information

Brand
SensorSwitch

General Product Info

12-Digit UPC
194994217374
Color
Ivory
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
Product UPC
19499421737

Certifications and Compliance

Country of Origin
China,China
Features
  • DESIGN: Perfect replacement for regular wall on/off and dimming control of most dimmable incandescent, LED and CFL lamp fixtures
  • PRESET: Preset light level option allows the dimmer will turn on to the light level that it was adjusted to the previous time when the light was on
  • PROGRAM: Program high and low dimming range; fixtures illuminate according to previously adjusted light levels
  • LISTINGS: UL 1472, NEMA SSL 7A
  • CONTROL: Use with single-pole or 3-way control with a regular on/off mechanical switch (sold separately)
  • DIMMING: 600W maximum dimming load
  • DEISGN: This UL 1472 listed and NEMA SSL 7A certified solution accepts 120VAC line voltage from a single device and includes a sliding air-gap switch to disconnect power while replacing bulbs.
  • MOUNTING: Single or Multi-Gange Wall Box
  • WARRANTY: 5-year limited warranty
  • INDICATOR: Programming Status LED Indicator
Standards
  • ULCA Title 24
