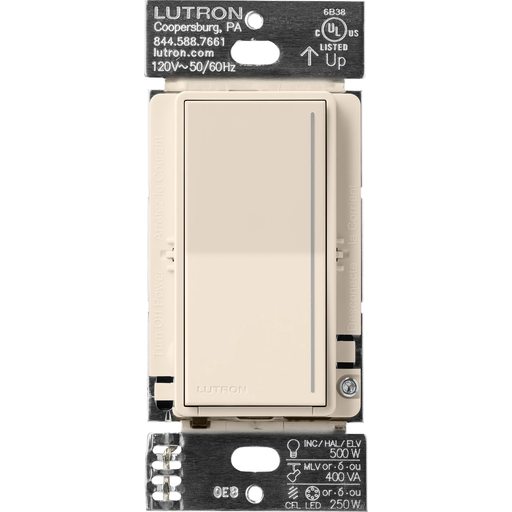

LUT ST-PRO-N-LA SUNNATA PRO LA

Manufacturer: Lutron Electronics | Catalog # ST-PRO-N-LA | Codale Part # 4537145
$139.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Sunnata PRO LED+ Touch dimmer switch with LED+ Advanced Technology provides superior dimming for up to 250W LED, 500W Incandescent/Halogen/ELV, and 400VA MLV. This innovative decorator-style LED+ dimmer switch features phase selectable dimming for a wider compatibility range among electronic low voltage, magnetic low voltage loads, as well as LED, halogen, and incandescent bulbs. The Sunnata PRO LED+ Dimmer features a large intuitive paddle to turn lights On/Off and a sleek light bar you can swipe across to dim/brighten your lights. Dim from every location by adding the new Sunnata PRO companion dimmer switch (ST-RD-xx, sold separately). Add up to four additional PRO companion dimmers to control from up to five locations - companions will match programming and lightbar status of main dimmer. Neutral wire required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Applications
Lighting
Material
Metal
Power Rating
250 W LED/CFL, 500 W ELV/Incandescent/Halogen, 400 VA MLV
Type
Neutral, PRO LED+ Phase Selectable
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Sunnata

General Product Info

12-Digit UPC
784276286121
Color
Almond
Finish
Gloss
Product UPC
78427628612

Dimensions

Depth
2.56 Inch
Length
4.69 Inch
Width
2.94 in
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • NEMA SSL-7A Compliant
  • UL Listed
Features
  • Includes (1) Sunnata PRO LED+ Touch dimmer switch; Gloss finish
  • Works with up to 250W of dimmable LEDs, 500W ELV/Incandescent/Halogen bulbs, or 400VA MLV; Neutral wire required

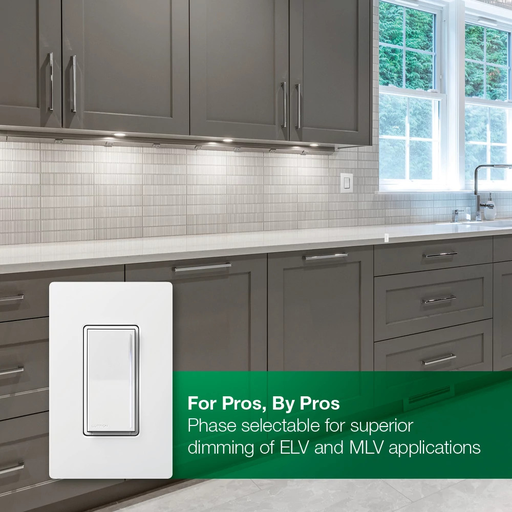

  • Phase Selectable: Compatible with electronic low voltage (ELV) and magnetic low voltage (MLV) applications, as well as LEDs, incandescent, and halogen bulbs

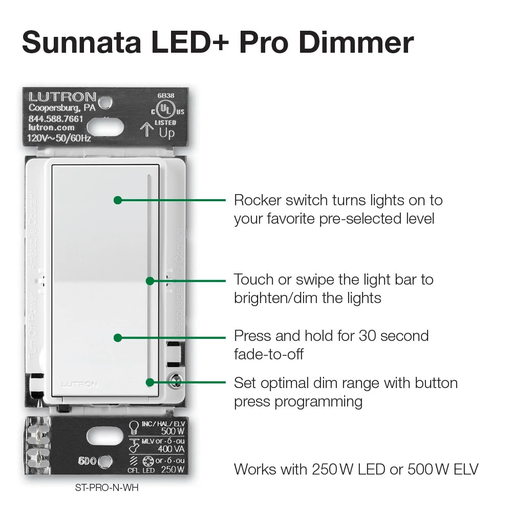

  • Touch or swipe the white light bar to brighten/dim your lights; this lightbar also doubles as a locator light to help find the dimmer switch in the dark

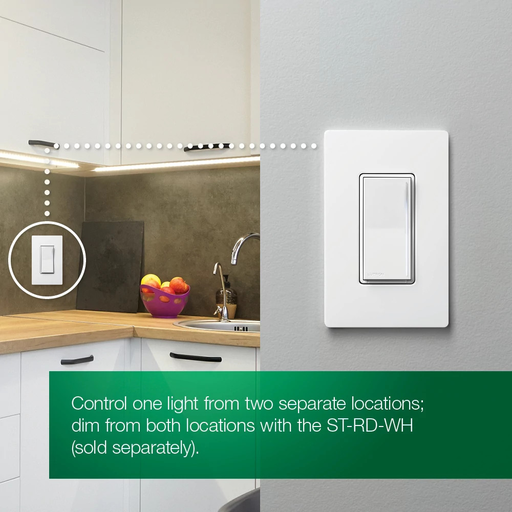

  • Dim from every location by adding Sunnata PRO companion dimmer switches (ST-RD-xx, sold separately); Add up to four PRO companion dimmers to dim from up to five locations (Companion dimmers will match the settings and lightbar status of the main dimmer
  • Utilizes screw terminals; not for use with 3-way mechanical switches
  • MyLevel Personalization gives you the ability to customize your Sunnata PRO LED+ dimmer; Adjust the brightness of the light bar, set high- and low-end trims, adjust or disable the locator light, as well as set as favorite light level
  • Press and hold Off button for 1 second to activate a 30 second delayed fade-to-off
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
