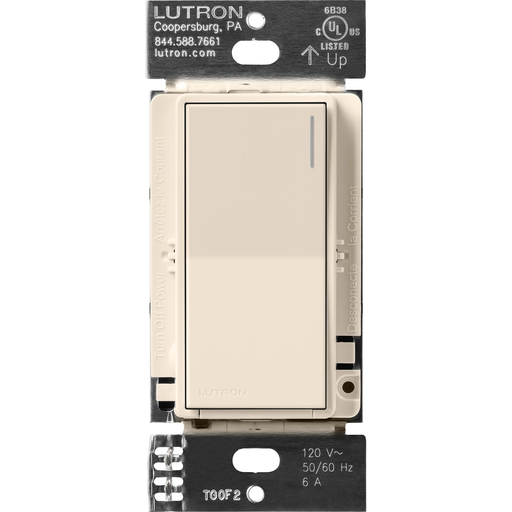

LUT ST-6ANS-LA SUNNATA CTRL SW LA

Manufacturer: Lutron Electronics | Catalog # ST-6ANS-LA | Codale Part # 4537146
$139.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

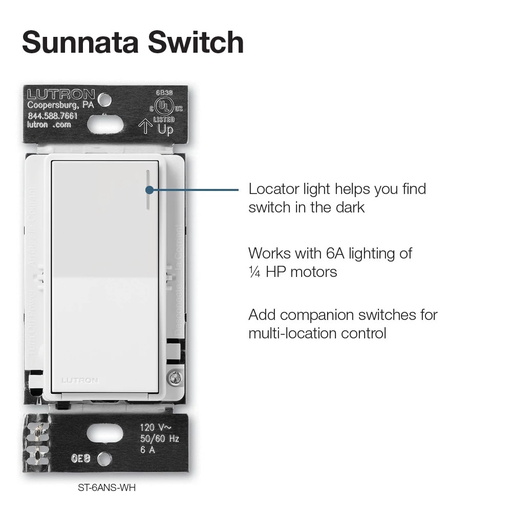

The Lutron Sunnata Switch features a intuitive paddle to turn lights or motors On/Off. Rated up to 6A for lighting or 3A, 1/10HP motor loads, this switch features a sleek design to match other Sunnata dimmers and switches. Use with the Sunnata companion switch (ST-RS-xx) to create a multi-location application. Works with up to four Sunnata companion switches to control one light or motor from up to 5 locations. Neutral wire required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately); Available in 20+ colors.

Technical Information

Amperage
6 Amp Light, 3 Amp Mo-r
Applications
Lighting
Material
Metal
Type
Standalone

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Sunnata

General Product Info

12-Digit UPC
784276286190
Color
Light Almond
Finish
Gloss
Product UPC
78427628619

Dimensions

Length
4.69 Inch
Width
2.94 in
Features
  • Includes (1) Sunnata Switch; Gloss finish
  • Works with up to 6A lighting or 3A 1/10 HP motors
  • Neutral wire required

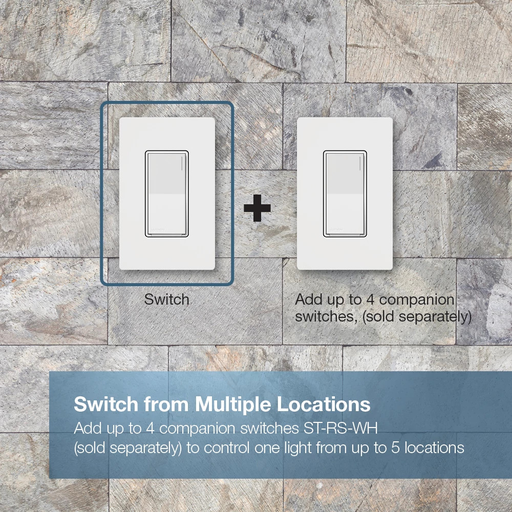

  • Use up to 4 Sunnata companion switches (ST-RS-xx, sold separately) to turn light or motor loads On/Off (Companions required for multi-location switching)
  • Screw terminal connections
  • White locator light glows softly to help you find the switch in the dark; customize locator light to set preferred brightness
  • MyLevel Personalization allows adjustment of locator light brightness and operation
  • Press and hold Off button for 30 seconds for delayed off
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • 6 A Light, 1/10 HP 3 A motor neutral wire electronic switch
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • NEMA SSL-7A Compliant
  • UL Listed
