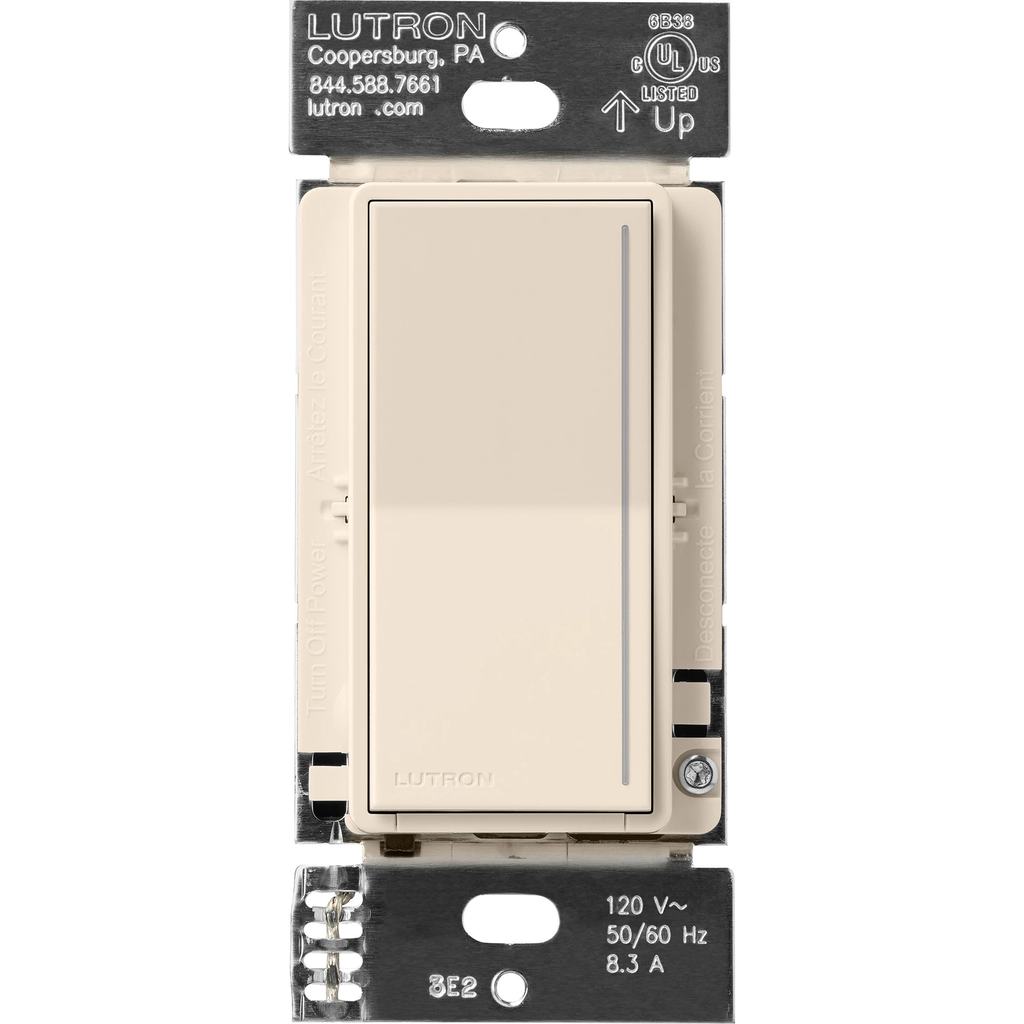

Product image for LUT ST-RD-LA SUNNATA COM DIM LA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

LUT ST-RD-LA SUNNATA COM DIM LA

Manufacturer: Lutron Electronics | Catalog # ST-RD-LA | Codale Part # 4537147
$89.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

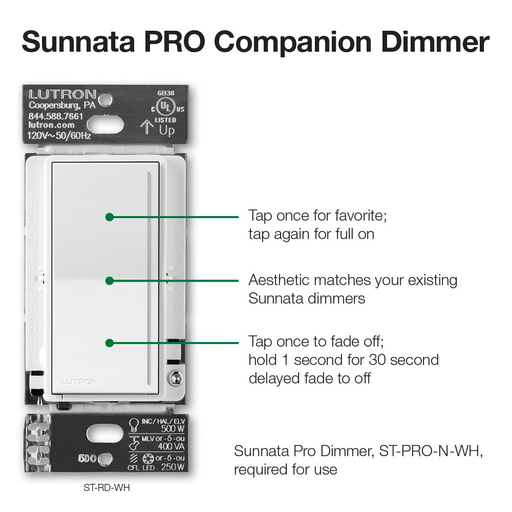

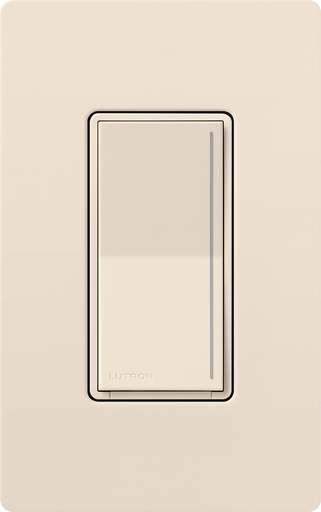

The Sunnata companion dimmer switch allows you to expand the use of your existing Sunnata PRO LED+ dimmer switch (ST-PRO-N-xx only) and its advanced LED+ dimming technology. This decorator-style switch features a large intuitive paddle to turn lights On/Off, white touch lightbar, and a sleek innovative design to match other Sunnata dimmers and switches. This companion dimmer switch is not for standalone use- requires the Lutron Sunnata PRO LED+ Touch Dimmer (ST-PRO-N-xx) to function. Add up to 4 Sunnata Companion dimmer switches to create a multi-location dimming applications from up to 5 locations. Tap the On button once for your favorite light level, set by your Sunnata dimmer switch, and twice for full brightness. Swipe or touch anywhere on the light bar to adjust light level and push and hold the Off button for 1 second to activate a 30 second delayed fade-to-off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Applications
Lighting
Material
Metal
Type
PRO Companion
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Sunnata

General Product Info

12-Digit UPC
784276286268
Color
Almond
Finish
Gloss
Product UPC
78427628626

Dimensions

Length
4.69 Inch
Width
2.94 in
Features
  • Includes (1) Sunnata PRO Companion Dimmer; Gloss finish
  • Not for standalone use - only compatible as a multi-location companion dimmer to the Sunnata PRO Touch LED+ Dimmer (ST-PRO-N-xx sold separately)
  • No Neutral Required
  • Touch or swipe the white light bar to brighten/dim your lights; this lightbar also doubles as a locator light to help find the dimmer switch in the dark
  • Add up to four (4) PRO companion dimmers to dim from up to five locations (Companion dimmers will match the settings and lightbar status of the main dimmer)
  • Utilizes screw terminals; not for use with 3-way mechanical switches
  • Customize Sunnata PRO LED+ dimmers through MyLevel Personalization; Adjust the lightbar brightness, high- and low-end trims, as well as a preset light level (Companion dimmers reflect the settings and lightbar status on the Sunnata PRO Touch LED+ Dimmer)
  • Press and hold Off button for 1 second to activate 30 second delayed off
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • NEMA SSL-7A Compliant
  • UL Listed
