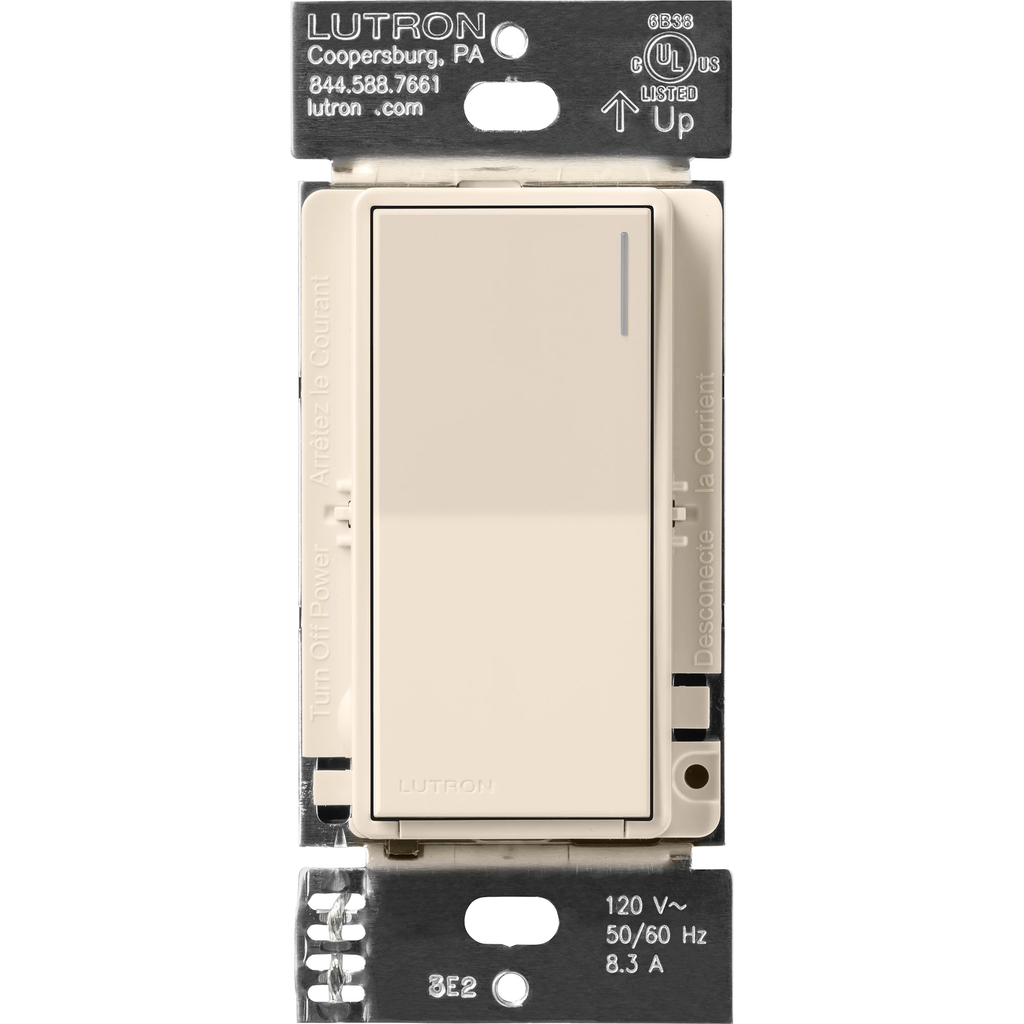

LUT ST-RS-LA SUNNATA COM SW LA

Manufacturer: Lutron Electronics | Catalog # ST-RS-LA | Codale Part # 4537148
$89.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

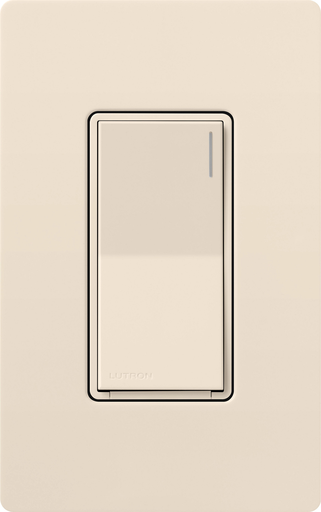

The new Sunnata companion switch allows you to expand the use of your existing Sunnata switches (ST-6ANS-xx) to create multi location applications. This decorator-style switch features a large intuitive paddle to turn lights On/Off, white status lightbar, and a sleek innovative design to match other Sunnata dimmers and switches. Use up to 4 Sunnata Companion Switches to one Sunnata Switch to control lights or motors from up to 5 locations. This accessory switch is not for standalone use- requires the Lutron Sunnata 6A On/Off Switch (ST-6ANS-xx) to function. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Technical Information

Applications
Lighting
Material
Metal
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Sunnata

General Product Info

12-Digit UPC
784276286336
Color
Almond
Finish
Gloss
Product UPC
78427628633

Dimensions

Length
4.69 Inch
Width
2.94 in
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • NEMA SSL-7A Compliant
  • UL Listed
Features
  • Includes (1) Sunnata Companion Switch; Gloss finish
  • Not for standalone use - only compatible as a multi-location companion switch to the Sunnata Switch (ST-6ANS-xx sold separately)
  • No Neutral Required
  • Use for 3-way or multi-location applications; Up to 4 Sunnata Companion Switches can be used with only one Sunnata Switch (ST-6ANS-xx) to control from up to 5 locations
  • Screw terminal connections
  • Push and hold the Off button for 1 second to activate a 30 second delayed off
  • Features white locator light to match Sunnata Switch
  • MyLevel Personalization- Program the LED Status light's brightness and operation on the Sunnata Switch (Companion switches will match programming from the ST-6ANS-xx)
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
