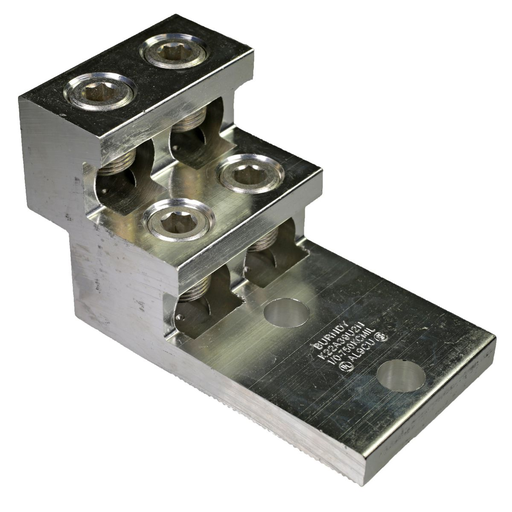

Product image for Burndy K22A39U2N Aluminum Universal Terminal, 2 Hole, 1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing), tin plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy K22A39U2N Aluminum Universal Terminal, 2 Hole, 1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing), tin plated

Manufacturer: Hubbell-Burndy | Catalog # K22A39U2N | Codale Part # 4537275
$193.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Aluminum Universal Terminal, 2 Hole, 1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing), tin plated

Technical Information

Connection Type
Stacked
Material
Aluminum
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810670163
Product UPC
78181067016

Dimensions

Height
3 Inch
Hole Size
0 mm
Length
5.34 Inch
Overall Length
0 mm
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • AL9CU Dual Rated for both copper an aluminum conductor
  • Listed to UL Wire Connector Standard UL486A-486B
  • 1/2\" diameter stud holes spaced 1-3/4\" on center (NEMA-spacing)
  • 600 Volt Rated
  • Range Taking conductor port
