SATCO S11873 15WLED/DW/6/CCT-SEL/SQ

Manufacturer: SATCO Lighting | Catalog # S11873 | Codale Part # 4537487

$58.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

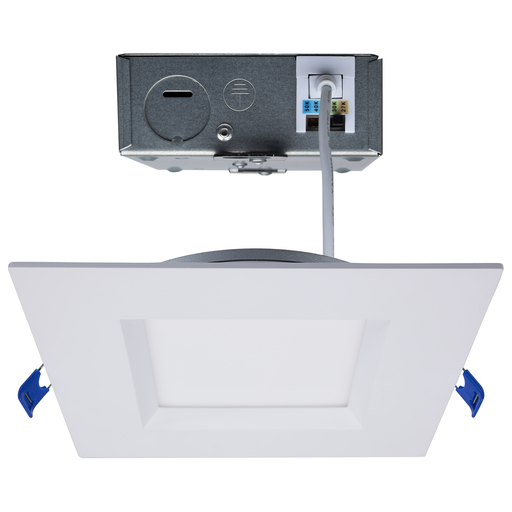

SATCO NUVO's S11873 Slim Fit 6 inch white square Downlight fixture delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from 2700K to 5000K, you can customize your lighting environment to your preference. The downlight comes with a remote driver for easy installation and boasts IC and wet ratings for versatile use and safety. Our downlight provides superior light quality with a high CRI of 90, ideal for various indoor applications including homes and multi-family residences.

Technical Information

Average Rated Life
50000 hr
Base
Integrated LED
Beam Angle
110 DEG
Beam Spread
110
Color Temperature
Warm White To Natural Light
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor
IP Rating
IP65
Lens Color
White
Lens Material
Polystyrene
Lumens
1,000 Lumen
Material
Aluminum
Operating Temperature
-20 degrees C
Power Factor
0.97
Size
7.17 IN
Style
Utility
Technology Type
LED
Type
Direct Wire LED Downlight
Voltage
120 Volt
Wattage
15 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923118739
Finish
White
Fixture Type
Square
Product UPC
04592311873
Weight
1.38 lb

Dimensions

Height
1.29 Inch
Length
7.17 Inch
Warranty Length
5 yr
Width
7.17 in

Certifications and Compliance

Country of Origin
Thailand

Certifications & Compliance

Prop 65 Warning
Lead
Features
  • CCT Selectable
  • 90 CRI
  • Dimmable
  • Wet location rated
  • Rated for 50,000 hours
  • 5-Year Warranty
  • FCC and RoHS Compliant
Installation Notes
  • Driver Dimensions: 4.27 x 3.62 x 1.44
Prop 65
  • Lead
