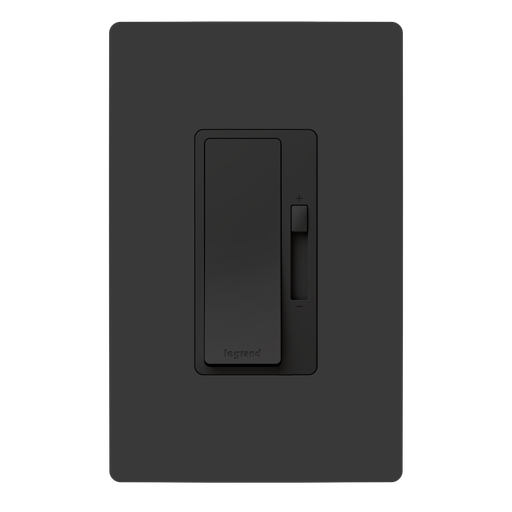

Product image for Pass & Seymour RHL153PBK 1P/3W Preset radiant® LED Advanced Wall Dimmer, 150W LED, 120VAC, 60Hz, Black (Wall Plate not included)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Pass & Seymour RHL153PBK 1P/3W Preset radiant® LED Advanced Wall Dimmer, 150W LED, 120VAC, 60Hz, Black (Wall Plate not included)

Manufacturer: Legrand Pass & Seymour | Catalog # RHL153PBK | Codale Part # 4537534
$76.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Upgrade your space with Legrand's newest LED dimmer switch in the radiant® Collection. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures (except 0-10V LED drivers), this dimmer features advanced circuitry to offer a superior lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. As a part of the radiant® Collection, the advanced dimmer for LED lights also features clean lines and smooth control for a sophisticated touch. Pair with a screwless radiant® Wall Plate and other designer switches and outlets from the Collection for a cohesive design throughout the home.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Material
Polycarbonate

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007442885
Color
Black
Finish
Matte
Product UPC
78500744288
Weight
0.194 lb

Dimensions

Depth
1.46 Inch
Height
4.19 Inch
Width
1.74 in

Certifications and Compliance

Country of Origin
China
Features
  • Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC. Optimized to work out of the box and provide flicker-free control of LEDs. *Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers.
  • Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues.
  • Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering.
  • Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons.
  • Replaces any basic single-pole or 3-way switch or dimmer in less than 15 minutes. No neutral wire required, works in both new construction and retrofit applications.

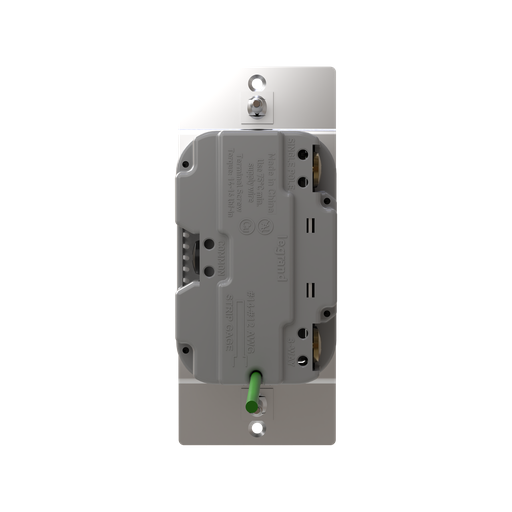

  • Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided.
  • QR code provided on front face of device to provide easy access to installation guides and videos.
  • Low-profile paddle switch offers smoother on/off preset control, while separate, ergonomic slider allows for precise adjustment of light levels.
  • Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage.
Certifications
  • RoHS Compliant
  • UL Listed
  • cULus Listed
  • CSA Listed
  • NEMA Conformity
