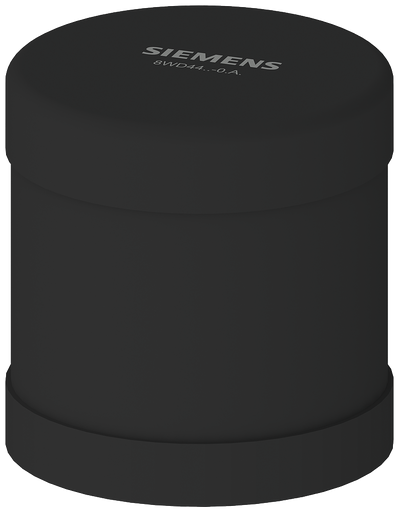

Siemens 8WD4440-0FA 115 VAC/VDC Black Thermoplastic 80 dB Continuous/Pulse Tone Signaling Column Buzzer Element

Manufacturer: Siemens | Catalog # 8WD4440-0FA | Codale Part # 4537625

$442.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buzzer element, continuous tone or pulsating, adjustable, 85 dB, black, 115 V AC, diameter 70 mm Buzzer element SIRIUS 8WD4 for modular installation of signaling columns, e.g. for visual and/or acoustic warning devices or for the control of complex processes. Thanks to the high degree of protection, the rugged devices are suitable for industrial use and are extremely resistant to shocks and vibrations. The secure bayonet mechanism allows easy installation as well as quick replacement of the acoustic elements. Acoustic elements can be adjusted in tone and volume. In addition to a continuous light, flashlights, blinklights and rotating lights in various colors and voltages are available, as well as buzzers and sirens. They can be supplied with various diameters, optionally also with communication capability through connection to AS-Interface Optimum light distribution is achieved by using several LEDs in one light module. Feet, pipes, brackets, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling columns - Modular and communication-capable with modern design.

Technical Information

Amperage
0.025 Amp
Material
Polycarbonate
Mounting Type
Horizontal/Vertical
Operating Temperature
-20 to 50 degrees C
Type
Continuous, Sound/Pulsed, Signalling Column, Adjustable
Voltage
115 VAC

Manufacturer Information

Brand
Siemens
Sub Brand
Pilot Devices

General Product Info

12-Digit UPC
754554781327
Color
Black
Product UPC
75455478132
Weight
0.196 lb

Dimensions

Height
2.72 Inch
Length
2.92 Inch
Width
3.000 in

Certifications and Compliance

Country of Origin
Germany
