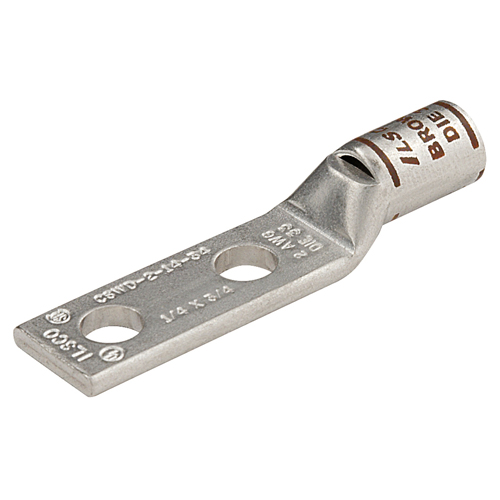

Product image for ILSCO CSWD-4-14-58 UL CSA Listed 4 AWG 9/32 Inch Mounting Hole 5/8 Inch Spacing Copper Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ILSCO CSWD-4-14-58 UL CSA Listed 4 AWG 9/32 Inch Mounting Hole 5/8 Inch Spacing Copper Compression Lug

Manufacturer: Ilsco | Catalog # CSWD-4-14-58 | Codale Part # 4538214
$9.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.625 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Sol, 4 Str, sight window, Square tang end, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,

Technical Information

Applications
Copper Compression Lug
Barrel Length
0.5 in
Barrel Type
Standard
Bolt Size
1/4 IN
Conductor Material
Copper
Conductor Type
Solid,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.281 in
Number of Holes
2 Hole
Size
L:2.171;W:0.486;H:0.373 IN
Strip Length
14.274 mm
Temperature Rating
90 degrees C
Type
CSWD:2 HOLE SHORT W/SIGHT
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669630817
Color
Gray,Silver
Product UPC
78366963081
Weight
0.026 lb

Dimensions

Height
0.373 Inch
Inside Diameter
0.25 in
Length
2.171 Inch
Outside Diameter
0.343 in
Width
0.486 in
