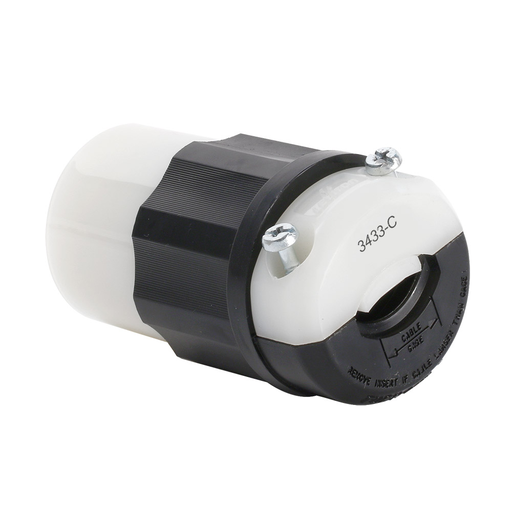

LEV 3433-C EB CONN LCK 4PO4WI3PH NO

Manufacturer: Leviton | Catalog # 3433-C | Codale Part # 4538302
$223.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 120/208 Volt 3-Phase Y, Non-NEMA, 4P, 4W, Locking Connector, Industrial Grade, Non-Grounding - BLACK-WHITE

Technical Information

Amperage
30 Amp
Applications
For Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
16-8 AWG
Contact Material
Solid Brass
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grade
Industrial
Grounding
Non-Grounding
Material
Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.22 Dia x 3.78 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Straight
Voltage
120/208 Volt
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand

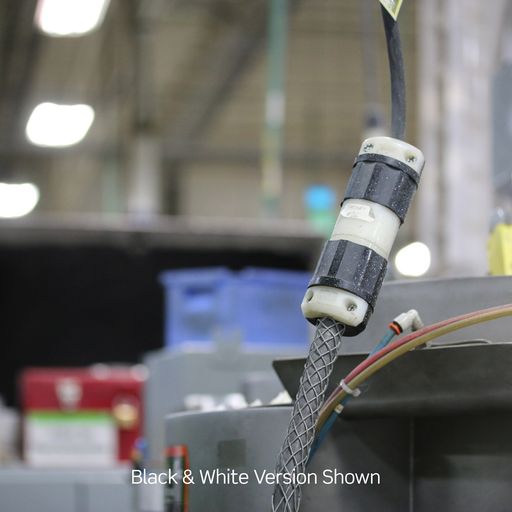

Black & White

General Product Info

12-Digit UPC
078477717004
Color
Black/White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847771700

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
