ILSCO PCT-6-2/0-B AL MEC (6) 2/0-14

Manufacturer: Ilsco | Catalog # PCT-6-2/0-B | Codale Part # 4538465
$146.35 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

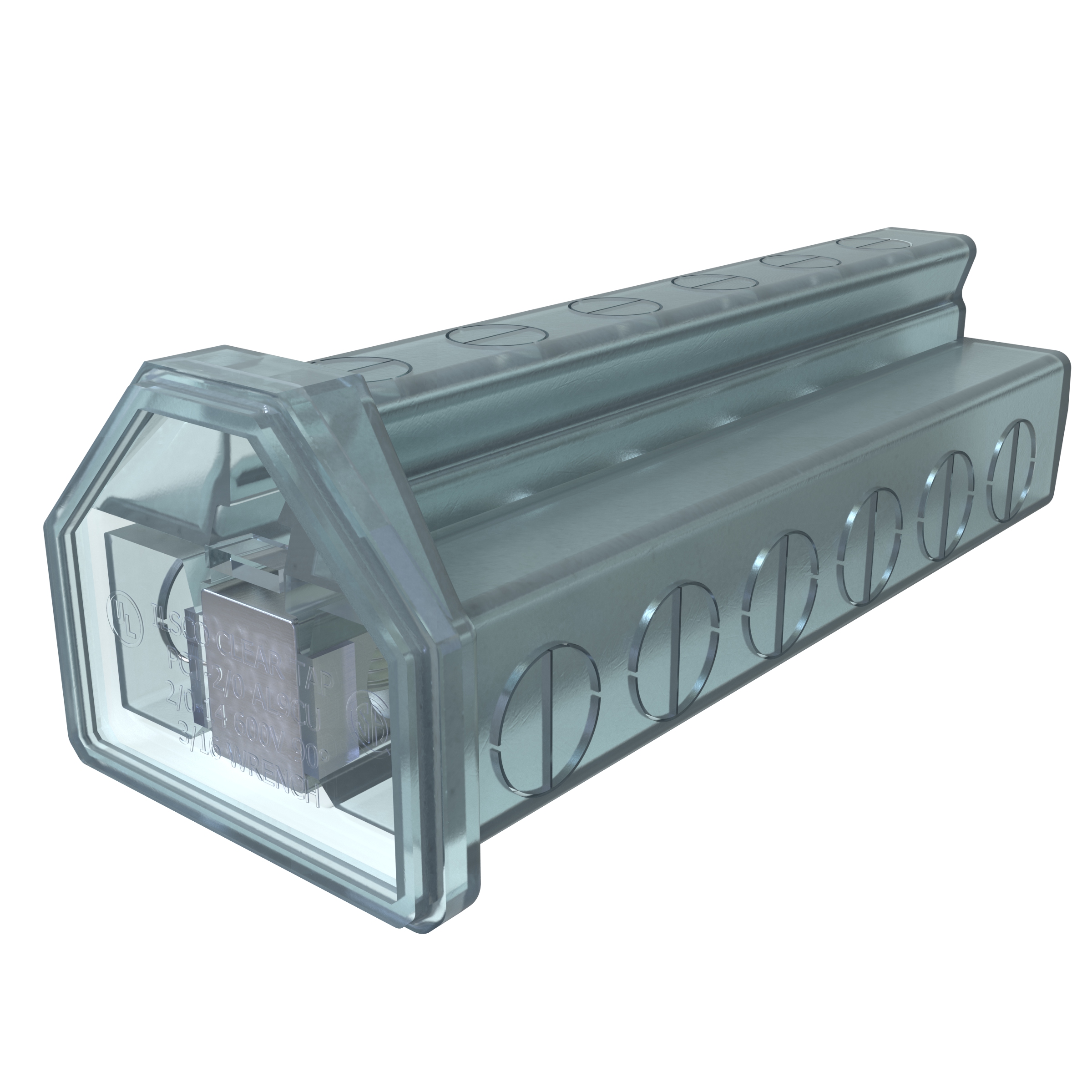

Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Clear, bag quantity 1, 1 poles,

Technical Information

Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
6
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PCTB:MULTI TAP INS BAG
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearTap®

General Product Info

12-Digit UPC
783669700909
Color
Clear
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366970090
Weight
0.559 lb

Dimensions

Height
1.919 Inch
Length
14 Inch
Width
4 in
