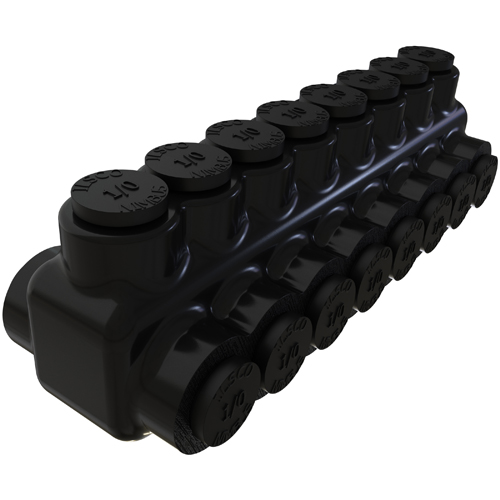

Product image for ILSCO PBTD-8-1/0 INSUL AL MECH (8)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ILSCO PBTD-8-1/0 INSUL AL MECH (8)

Manufacturer: Ilsco | Catalog # PBTD-8-1/0 | Codale Part # 4538498
$159.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 8 conductors, 8 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
170 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
8
Number of Ports
8
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Two Side, PBTD, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669077483
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366907748
Weight
0.561 lb

Dimensions

Height
1.627 Inch
Length
5.373 Inch
Width
1.825 in
