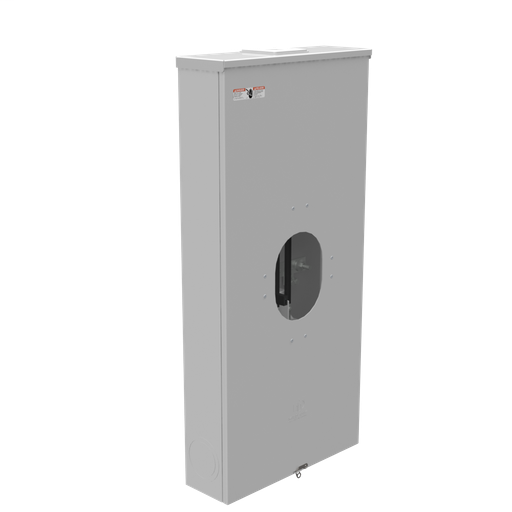

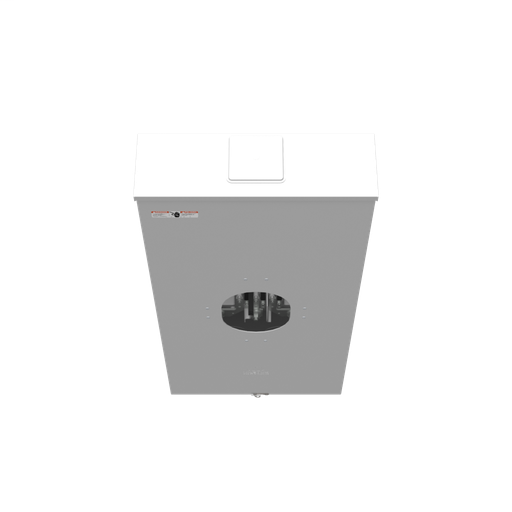

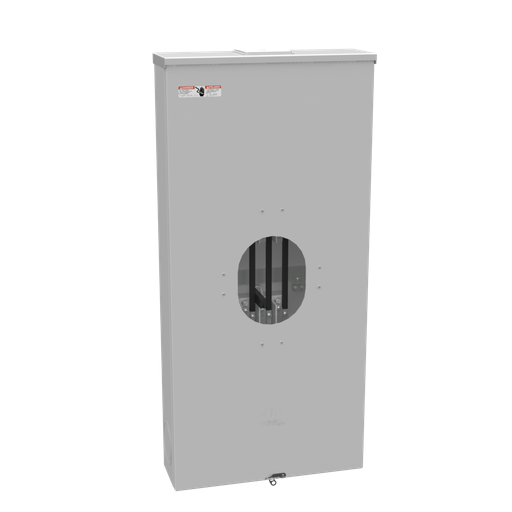

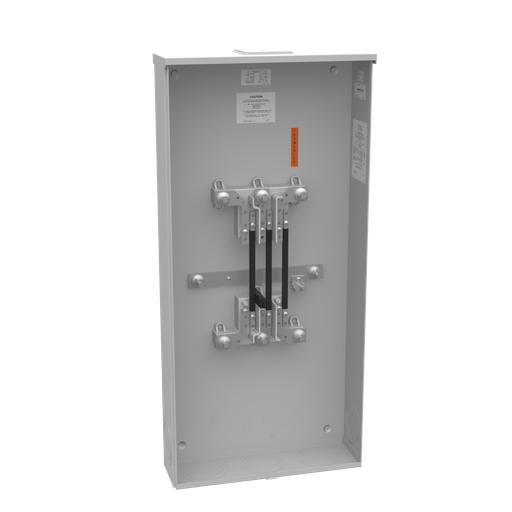

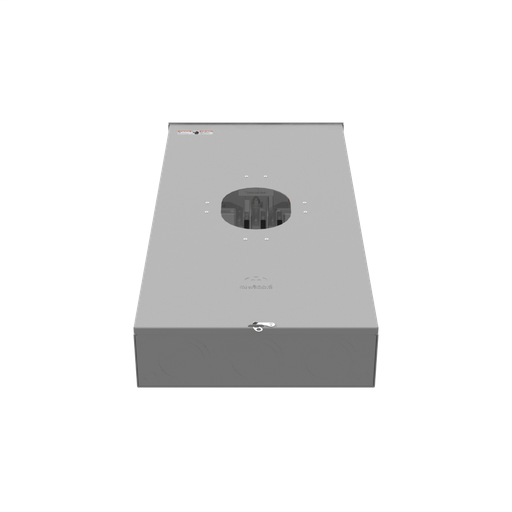

Product image for Milbank UA4667-X-8529 7 Terminal Bolt-in Large Closing Plate Link Bypass Unpainted Aluminum Configuration 8529
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Email

Milbank UA4667-X-8529 7 Terminal Bolt-in Large Closing Plate Link Bypass Unpainted Aluminum Configuration 8529

Manufacturer: Milbank | Catalog # UA4667-X-8529 | Codale Part # 4538523
$2,938.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
7 TERM BOLT-IN LRG CLS PLT LINK BYPS UNPNTD ALUM CONFIG 8529

Technical Information

Amperage
480 Amp
Applications
Meter Socket
Cable Entry
Overhead Or Underground
Enclosure
G90 Galvanized Steel With Powder Coat Finish,Type 3R
Frequency
60 Hz
Insulation Type
Glass Polyester
Material
Steel
Mounting Type
Surface Mount
Number of Phases
3 Phase
Number of Terminations
7
Size
6L x 20.25W x 43H
Standard
Type 3R,UL Listed
Terminal Type
1/2 Inch Stud Line Side
Type
Bolt On Meter Socket
Voltage
600 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572300620
Hub Style
Large Closing Plate
Product UPC
78457230062

Dimensions

Height
43 Inch
Length
6 Inch
Width
20.25 in
