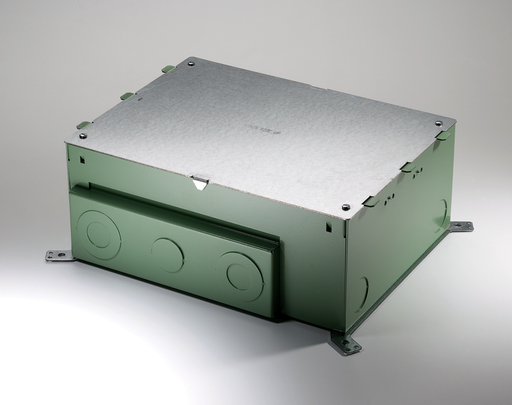

Wiremold EFB10S-OG Evolution™-Series Ten-Gang Floor Box

Manufacturer: Legrand Wiremold | Catalog # EFB10S-OG | Codale Part # 4538590

$823.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Evolution™ Series Floor Boxes are the latest advancement in the most complete and innovative line of floor solutions in the industry. In addition to a unique design that allows the same floor box to be used in multiple floor applications, high capacity and multi-functional capabilities make Evolution Series Floor Boxes ideal for areas where large capacity audio/video, power and communication services are needed. Ranging in size from 6- to 10-gangs of capacity, these boxes have completely finished interiors with removable modules that provide easy access for reconfiguring services. Evolution Series Floor Boxes are an ideal option for installations where services are constantly evolving, such as commercial offices, conference rooms, stages, and entertainment venues.

Technical Information

Applications
Commercial
Cable Entry
knockouts
Material
Steel
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776176483
Construction
Assembled
Product Series
Evolution
Product UPC
78677617648

Dimensions

Height
6 Inch
Length
15-1/8 Inch
Width
11.187 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Features
  • Designed to be installed in both on-grade and above grade concrete floor applications. Box has an epoxy coating that allows the box to be placed in on-grade applications without the need for additional vapor barriers.
  • Box comes complete with all components needed for initial installation.
  • Items not included with the box and sold separately are: receptacles, communication jacks, and A/V devices and device plates.
  • Custom options are available upon request. NOTE: For use on bare (polished) concrete or terrazzo floors EFB610-CTR must be used. (Sold separately.)
  • Include protective/disposable cover, tunnel system for connecting the 2 modules of compartments, 2 removable modules, 2 cable management guides, 2 leveling support legs for concrete applications & trade size knockouts ranging in size from 3/4'' to 1 1/4''
Certifications
  • RoHS Compliant
  • cULus Listed
