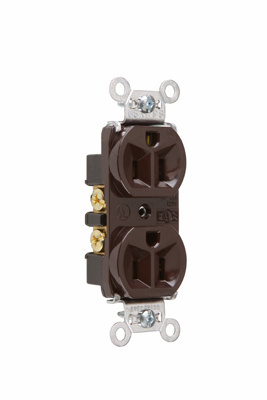

Product image for Pass & Seymour 5262 Hard Use Spec Grade Duplex Receptacle Back & Side Wire 15Amp 125Volt, Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 5262 Hard Use Spec Grade Duplex Receptacle Back & Side Wire 15Amp 125Volt, Brown

Manufacturer: Legrand Pass & Seymour | Catalog # 5262 | Codale Part # 4538603
$33.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hard Use Spec Grade Duplex Receptacle Back & Side Wire 15amp 125volt Blue

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Grade
Specification
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Hard Use
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007526202
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
Product UPC
78500752620
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
