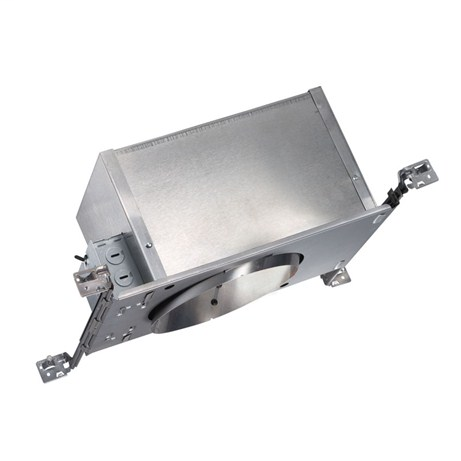

6" Incandescent Super Slope Ceiling New Construction IC Housing w/ Push-In Connecotrs

Manufacturer: Lithonia Lighting | Catalog # IC928W | Codale Part # 4538711
$90.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The IC-rated, double wall construction housing for use in 7/12 to 12/12 pitch slopes, 30 to 45 degrees, can be completely covered with insulation. Its energy-efficient Air-Loc® installation stops infiltration and exfiltration of air, reducing heating and cooling costs. Juno's patented Slope Ceiling Down-Lites direct light straight down, providing proper lighting from a sloped surface

Technical Information

Applications
Recessed Commercial; Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc
Lamp Type
Incandescent
Lamp Wattage
90 WTT
Number of Lamps
1
Type
Slope; Adjustable; Downlight
Voltage
120 Volt

Manufacturer Information

Brand
Juno Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209107817
Fixture Type
Incandescent Line Voltage
Product UPC
66120910781
Shape
Round
Description
  • Fully sealed Air-Loc housing
  • Angle-cut baffles ensure grooves remain parallel to the floor to provide proper optics
  • Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
  • Adjustable socket plate permits lamp to remain perpendicular to floor through entire pitch range
  • Oblique angle housing design holds trim flush with the ceiling
  • Medium base porcelain socket with nickel-plated copper screw shell
  • UL Listed, cUL, CSA Certified for through-branch wiring, maximum 8 No. 12 AWG 90 degrees C branch circuit connectors: 4 in, 4 out
  • Housing is vertically adjustable to accommodate up to a 1-inch ceiling thickness
  • Pre-wired junction box with five 1/2-inch and one 3/4-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
  • Real Nail® 3 bar hangers feature patented break-away bars for tight joist spacing
