P&S 67W75 TL SNG REC IP67 20A 3PH 2

Manufacturer: Legrand Pass & Seymour | Catalog # 67W75 | Codale Part # 4538992

$248.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

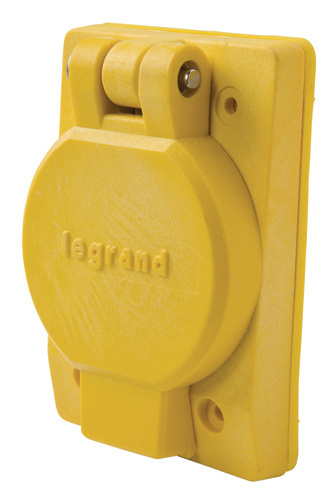

Turnlok Watertight Single Receptacle, 30amp 3 250 volt, NEMA Configuration L15-20, Impact resistant Valox lid, cover plate, and receptacle body withstand impacts, chemical, and corrosion.

Technical Information

Amperage
20 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
14-10 AWG
Cord Type
14/4 S to 10/4 S, .560" min to .775" max
Material
Rubber
NEMA
L15-20R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033687
Color
Yellow
Environmental Conditions
-40 to 60 C
Product UPC
78500703368
UNSPSC
39121402

Dimensions

Depth
4.03 Inch
Height
1.85 Inch
Length
1.69 Inch
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CSA
Country of Origin
USA
Features
  • Impact Resistant Valox lid, cover plate, and receptacle body withstand impacts, chemical & corrosion.
  • Spring loaded flip covers provide protection when device is not in use.
  • Stainless steel hinge spring and pin for corrosion resistance.
  • For Covering Patents, see www.legrand.us/patents.
Certifications
  • CSA Listed
