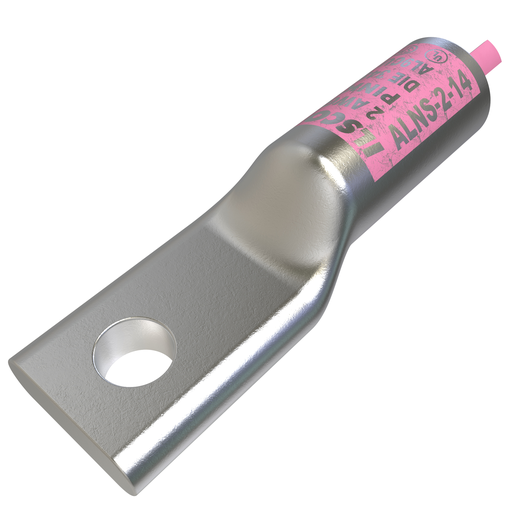

Product image for Ilsco ALNS-2-14 SureCrimp® Aluminum Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ALNS-2-14 SureCrimp® Aluminum Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-2-14 | Codale Part # 4539052
$10.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Pink, primary color Silver, die index 348,

Technical Information

Applications
For Copper and Aluminum Conductors
Barrel Length
0.97 in
Barrel Type
Chamfered
Color Coding
Pink
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.281 in
Mounting Type
Hole
Number of Holes
1 Hole
Size
L:2.24;W:0.7;H:0.555 IN
Standard
CSA,E2186,UL
Strip Length
26.225 mm
Stud Size
1/4 in
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669690491
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366969049
Weight
0.028 lb

Dimensions

Height
0.555 Inch
Inside Diameter
0.307 in
Length
2.24 Inch
Outside Diameter
0.525 in
Overall Length
2.24 in
Width
0.7 in
