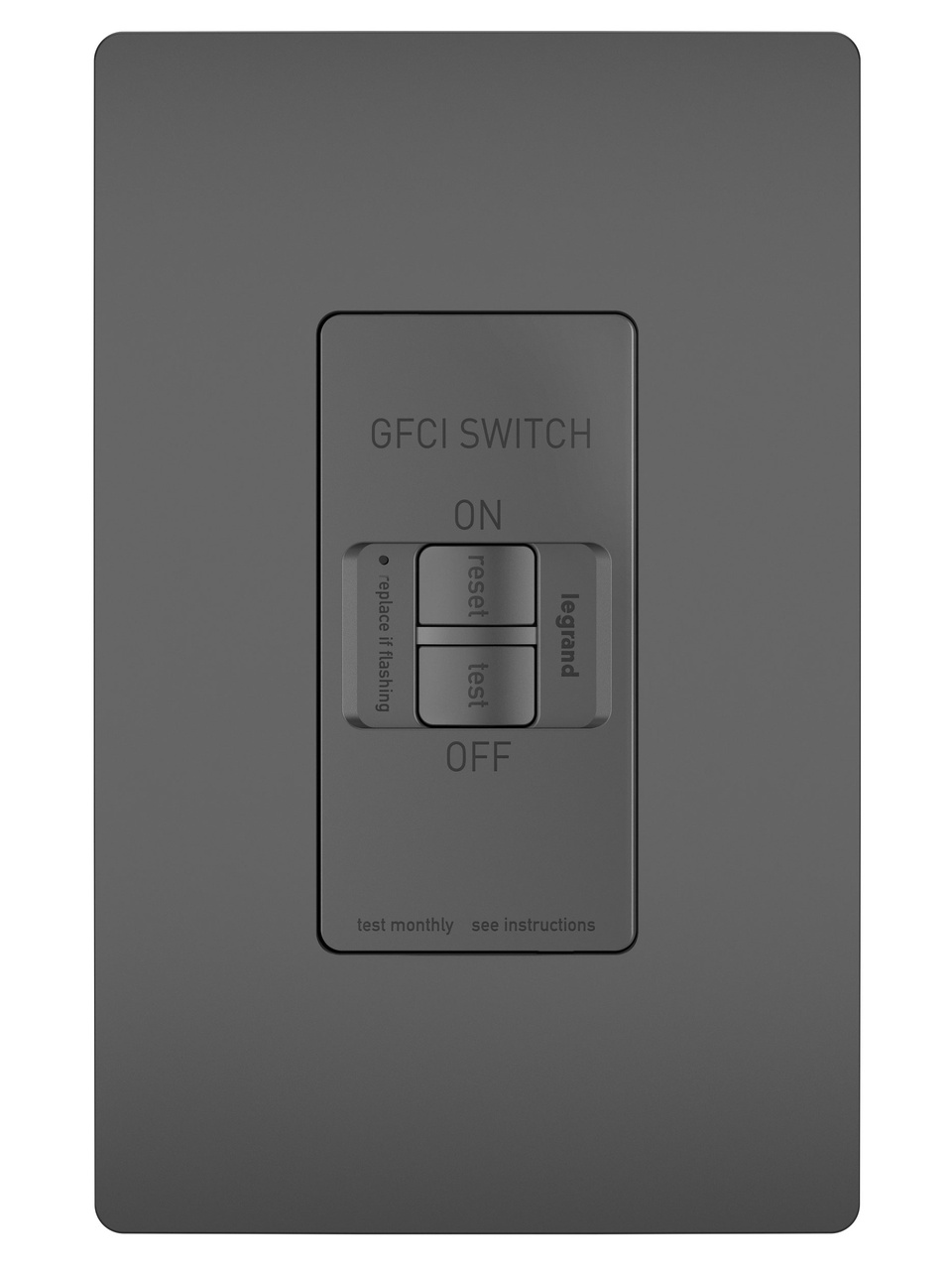

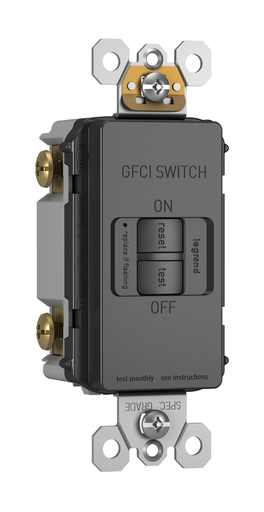

Pass & Seymour 2087-BK 20A 125V Deadfront Self-Test GFCI Black

Manufacturer: Legrand Pass & Seymour | Catalog # 2087BK | Codale Part # 4539121

$71.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
This dead front receptacle is a ground fault circuit interrupter designed for use when access to power isn't also needed. Ideal for use in spaces where ground fault protection is required around large or hard-to-move equipment, such as residential spa or hydromassage tubs and commercial kitchen appliances. The device features a convenient indicator light and accessible test/reset buttons that make trips easier to recognize and fix than with GFCI breaker alternatives. Conducts an automatic self-test every three seconds to ensure reliable protection, while also featuring the sleek, clean lines of the radiant® Collection for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial, Residential Use
Connection Type
Back and Side Wired
Frequency
60 Hz
Grade
Specification
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Box
NEMA
20A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
Dead Front,GFCI,Indoor,Self-Test
Style
GFCI Outlet
Tc Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Specification Grade Dead-Front 20A Self-Test GFCI Receptacle
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
radiant

General Product Info

12-Digit UPC
785007036060
Color
Black
Environmental Conditions
95% Relative Humidity
Finish
Matte
Product UPC
78500703606

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • cULus Listed
  • UL Listed
