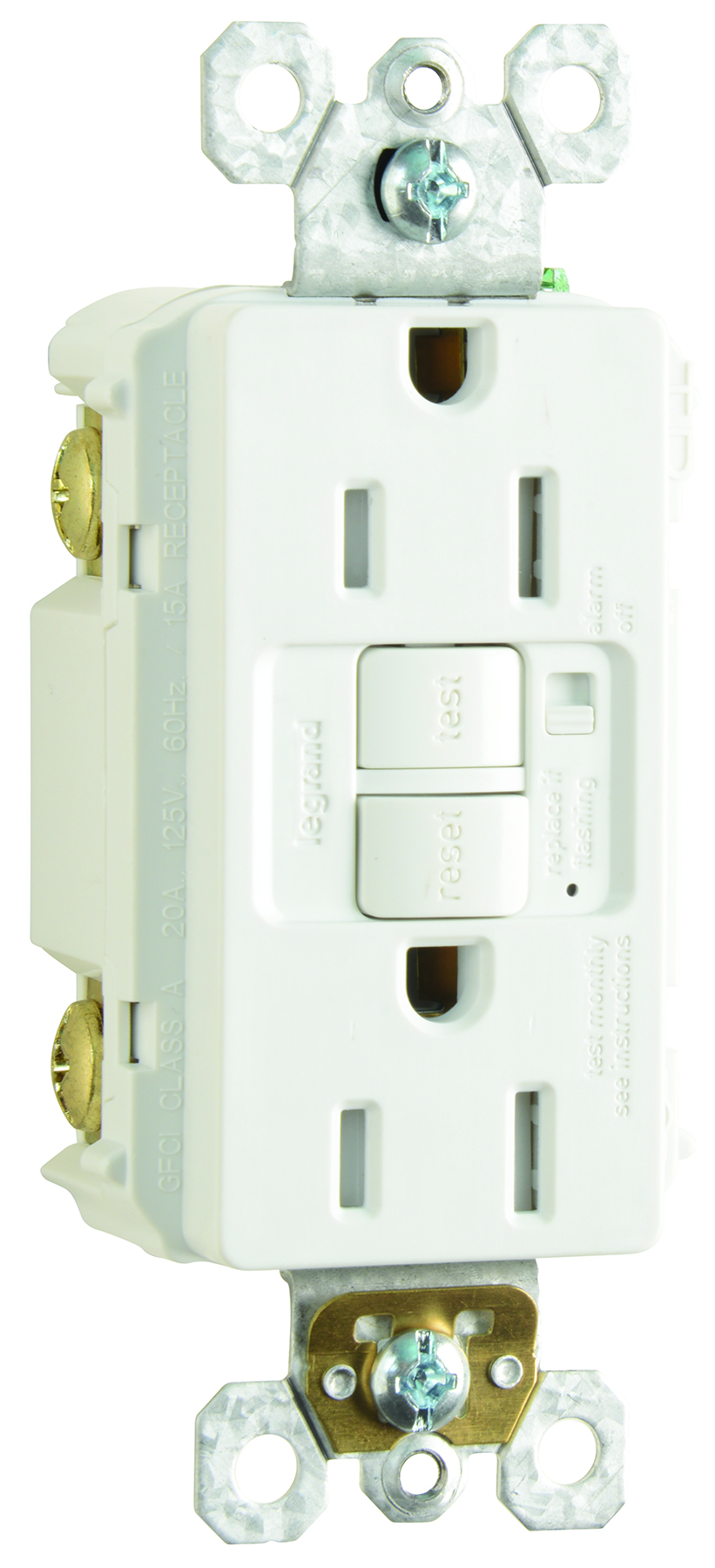

Product image for Pass & Seymour 1597-TRAW 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Audible Alarm Self-Test GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6

Email

Pass & Seymour 1597-TRAW 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Audible Alarm Self-Test GFCI Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # 1597TRAW | Codale Part # 4539182

$77.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
GFCI outlets from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code for ground fault protection in the home, GFCI outlets make it easier to fix trips right where they happen . no more confusion or running to the breaker box. This model includes an optional audible alarm, so trips never go unnoticed, and is great for appliances where loss of power could cause damage, such as freezers and sump pumps. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
Commercial,Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Box
NEMA
5-15R
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Outlet Type
GFCI,Indoor,Residential,Self-Test,Tamper-Resistant
Tc Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
GFCI,Tamper-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Weather Resistant
No

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007047844
Color
White
Environmental Conditions
95 PCT
Finish
Matte
Product UPC
78500704784

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
  • Audible Alarm alerts when a trip occurs. Alarm rated at 60 dB at 10 feet and can be turned ON/OFF.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
