LEV G5362-WTR RD IND GRAD WR TR ST

Manufacturer: Leviton | Catalog # G5362-WTR | Codale Part # 4539201
$55.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

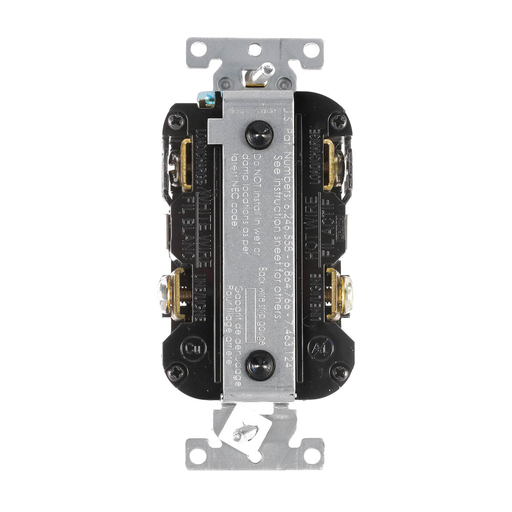

SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant, Power Indication, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red

Technical Information

Amperage
20 Amp
Applications
Industrial
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 To 66 degrees C
Termination Type
Back Wire,Side Wire
Type
Self-test SmartLock Pro Slim GFCI
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT C/I GFCI

General Product Info

12-Digit UPC
078477731017
Color
Red
Product UPC
07847773101

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
Patents
  • CA2621644
  • CA2677283
  • CA2865659
  • MX302458
  • MX308495
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8587914
  • US8599522
  • US9053886
  • US9077091
Color Variations
  • Brown
Features
  • Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Levitons patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
NEMA
  • 5-20R
