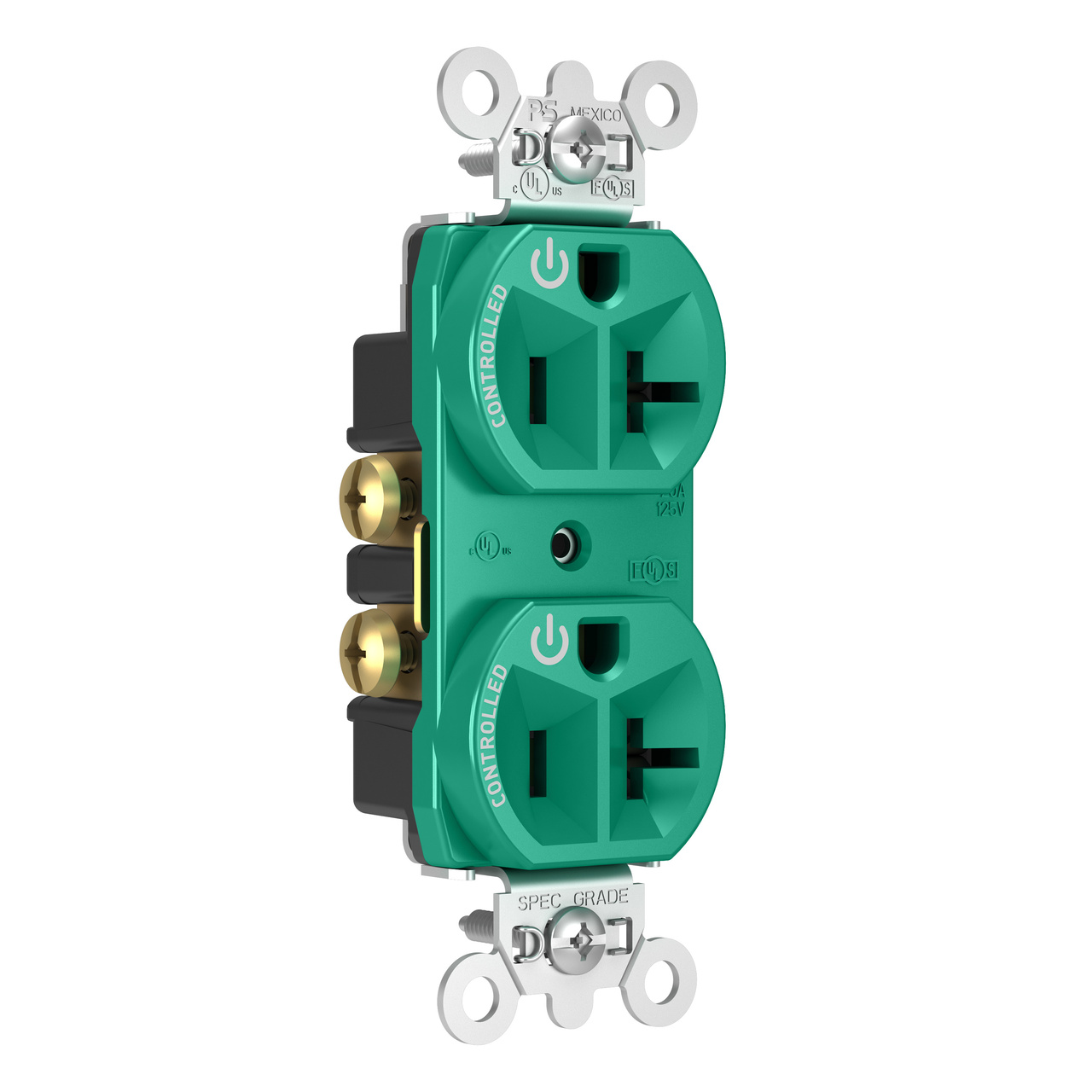

Pass & Seymour 5362CD-GN 20A 125V Dual Controlled Receptacle - Green

Manufacturer: Legrand Pass & Seymour | Catalog # 5362CDGN | Codale Part # 4539222
$19.25 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
20 A
Applications
Commercial
Indoor Outdoor
Indoor
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Energy Saving On/Off,Straight Blade
Voltage
125.0 V
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007052824
Color
Green
Product UPC
78500705282

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
  • Federal Spec Listed
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
