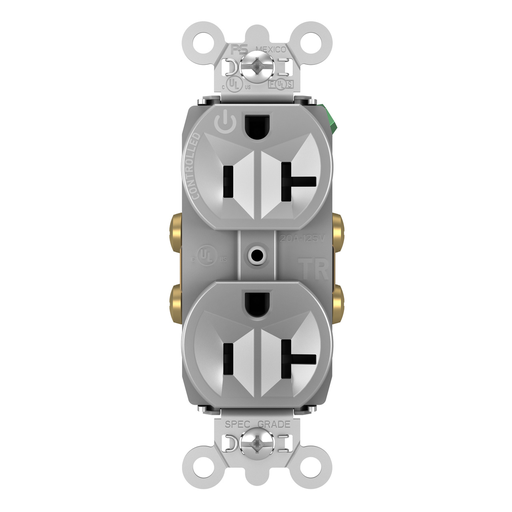

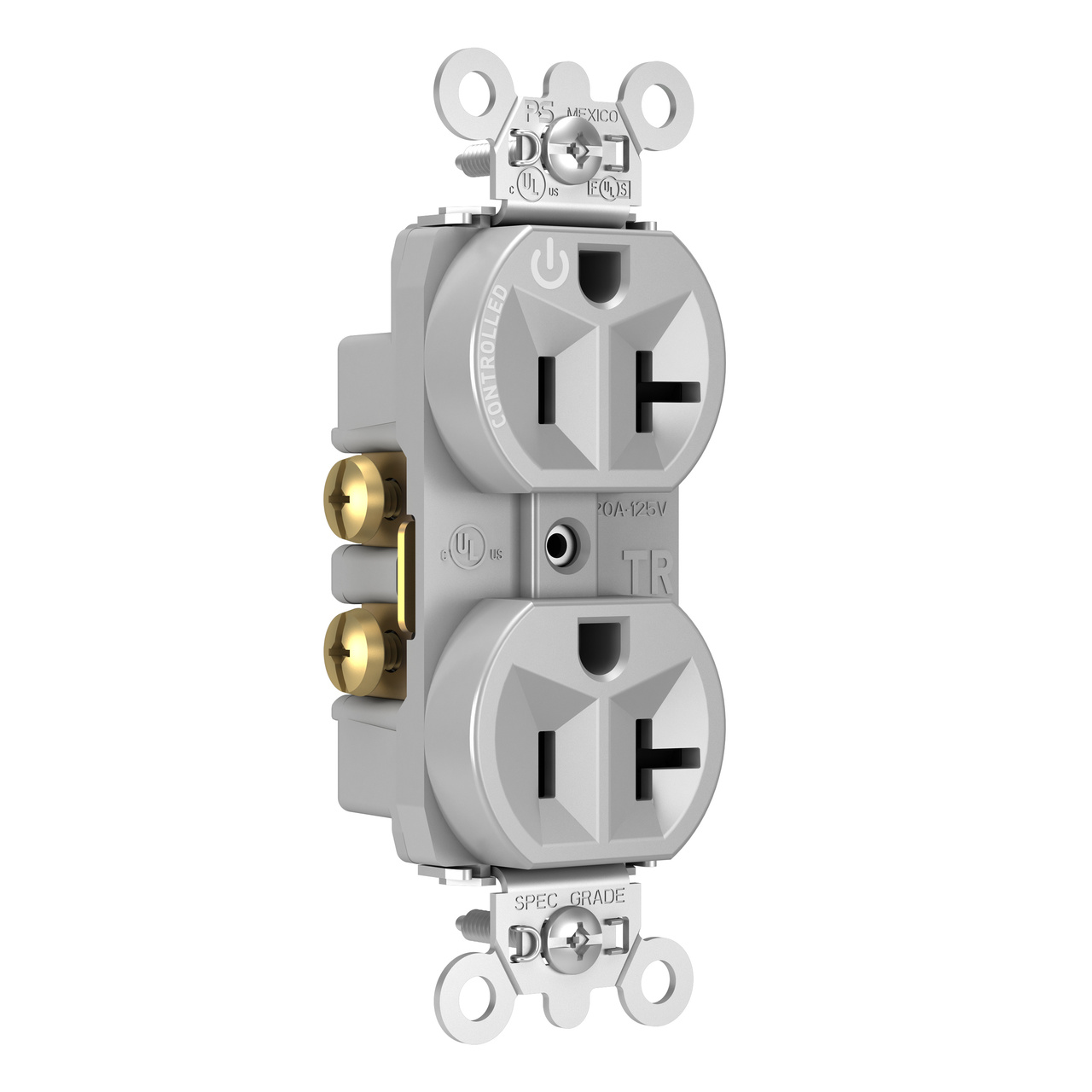

P&S TR5362CHGRY PLUG LOAD RECEP 20A

Manufacturer: Legrand Pass & Seymour | Catalog # TR5362CHGRY | Codale Part # 4539287
$24.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Technical Information

Amperage
20 Amp
Capacity
Duplex
Duty Rating
Commercial Spec,Hard Use
Grade
Commercial
NEMA
5-20R
Type
Receptacles
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007051186
Color
Gray
Product UPC
78500705118
UNSPSC
39121406

Dimensions

Depth
1.13 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Can be wired to any number of system-based or stand-alone plug load control solutions.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Permanent controlled receptacle markings using abrasion resistant ink.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Tri-drive brass-plated terminal screws. Two back-wire holes for more wiring flexibility.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • CH Version Only: Split circuit tab broken at the factory, allowing half of the receptacle to be controlled.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • Federal Spec Listed
