LEV TBR20-S1I IV REC DUP TR 2P3W 5-

Manufacturer: Leviton | Catalog # TBR20-S1I | Codale Part # 4539351
$25.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

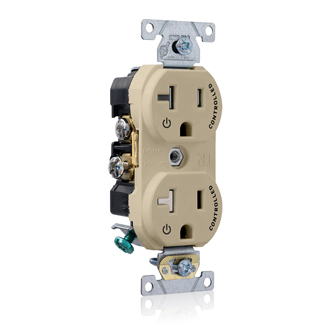

Duplex Receptacle Outlet, Commercial Specification Grade, Split-Circuit, One Outlet Marked "Controlled", Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Polypropylene
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
Polypropylene
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Standard
ANSI C-73,CSA C22.2 No. 42,UL 498
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Recep
Wire Count
3
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMMERCIAL RECEPTA

General Product Info

12-Digit UPC
078477760956
Color
Ivory
Product UPC
07847776095

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
Mexico
NEMA
  • 5-20R
Features
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Color Variations
  • Brown
