LEV TBR20-S2G CONTROLLED TR RECPT 5

Manufacturer: Leviton | Catalog # TBR20-S2G | Codale Part # 4539352
$24.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

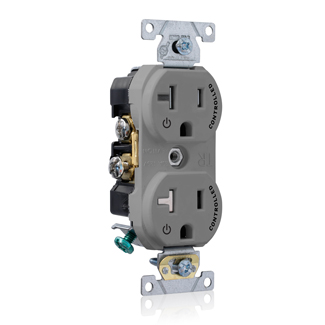

Duplex Receptacle Outlet, Commercial Specification Grade, Two Outlets Marked "Controlled", Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray

Technical Information

Amperage
20 Amp
Body Material
Polypropylene
Dielectric
2000 V
Enclosure
WD-6
Face Material
Polypropylene
Flamability Class
Rated V-2 Per UL94
Grounding
Self-Grounding
Horsepower
1/2 hp
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Standard
ANSI C-73,CSA C22.2 No. 42,UL 498
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Duplex Receptacle
Voltage
125 Volt
Wire Count
3
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477761069
Color
Gray
Product UPC
07847776106

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
Mexico
Features
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Color Variations
  • Brown
NEMA
  • 5-20R
