Product image for Caddy CD2BSF Bolt Close Conduit/Pipe Clamp with Shot-Fire Bracket, 1"-1.315" OD, 1" EMT, 1" Rigid/Pipe
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

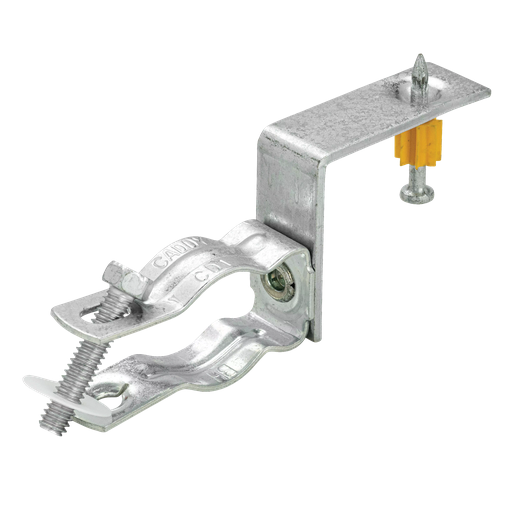

Caddy CD2BSF Bolt Close Conduit/Pipe Clamp with Shot-Fire Bracket, 1"-1.315" OD, 1" EMT, 1" Rigid/Pipe

Manufacturer: Caddy Fasteners | Catalog # CD2BSF | Codale Part # 4539560
$1,083.20/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Bolt Close Conduit/Pipe Clamp with Shot-Fire Bracket, 1".1.315" OD, 1" EMT, 1" Rigid/Pipe

Technical Information

Applications
datacom; electrical; hvac
Conduit Size
1 in
Material
Steel
Pipe Size
1 in
Type
Cable/Conduit

Packaging

Standard Packaging Qty
50 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856866442
Finish
Electro Galvanized
Product UPC
78285686644
Weight
0.07 kg

Dimensions

Height
2 Inch
Outer Diameter
1.000 in
Width
3-7/8 in
Features
  • Retained bolt and built-in nut means there are less parts to handle or drop
  • Combo head bolt works with slotted, hex, #3 phillips or #2 robertson drivers
  • Complete with shot-fire bracket and pre-assembled drive pin from DEWALT®

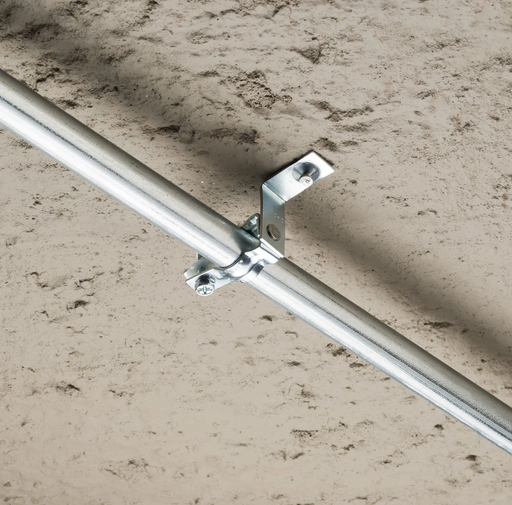

  • Quickly and easily attaches to concrete, steel or composite metal decking
  • Integrated pin installs easily using powder-actuated or single-shot gas-actuated tools
  • ICC-ES ESR-2024 evaluation report available for drive pin from DEWALT®
