Current CUWZ-HTR-PC Outdoor LED Emergency Light and Heater, Dark Bronze

Manufacturer: Current by GE | Catalog # CUWZ-HTR-PC | Codale Part # 4539727
$597.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

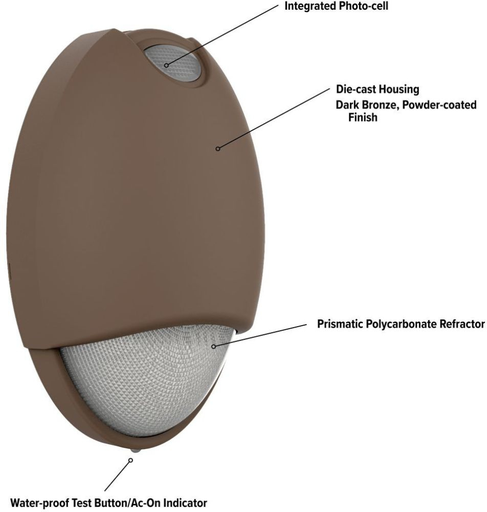

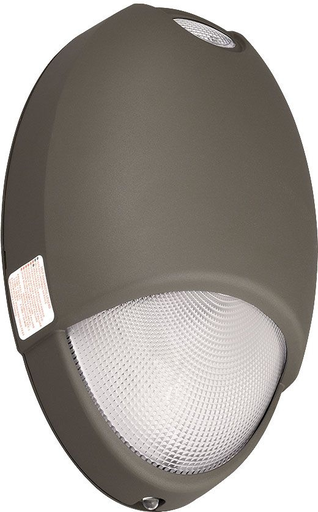

The CUW Series offers LED performance in normally-on AC and emergency lighting modes. The unit has a prismatic polycarbonate refractor with a durable die-cast aluminum housing available with durable powder coated finish in dark bronze. The housing is fully sealed and gasketed. It is designed for wall mounting with a universal K/O pattern in the back-plate for installation to most standard size junction boxes. Illumination is provided by 2 high power LEDs driven at 3 watts each. LED color at 5500K. Offers 1280 lumens in Normally-On mode and 310 lumens in emergency mode. In the unlikely event that any single LED should fail the remaining LED will continue to function.

Technical Information

Applications
Commercial,Outdoor,Parking Deck,Wet Location
Lamp Wattage
6 W
Light Source
LED
Material
Aluminum
Number of Lamps
2,2
Power Source
Hardwired
Size
10.47 in
Wattage
54 Watt

Manufacturer Information

Brand
Compass

General Product Info

12-Digit UPC
856143001820
Color
Bronze
Finish
Bronze
Product Series
CUW Emergency Light
Product UPC
85614300182
Weight
4 lb

Dimensions

Height
10.47 Inch
Length
6.54 Inch
Warranty Length
2 yr
Width
3.78 in

Certifications and Compliance

Country of Origin
China
Features
  • Prismatic Polycarbonate Refractor
  • Long-Life Nickel Cadmium Battery
  • Fully Sealed and Gasketed Design
  • Photocontrol Standard
  • Battery Recharge within 24 Hr
  • Fully Automatic Solid-State Charger
  • Provided with Waterproof Test Switch and AC-On Indicator
Additional Information
  • Current Rating 0.21 Amp at 120 Volt, 0.25 Amp at 277 Volt
  • Input Power Rating 18.47 Watt at 120 Volt, 58.9 Watt at 277 Volt
  • Temperature -20 to 40 Deg C

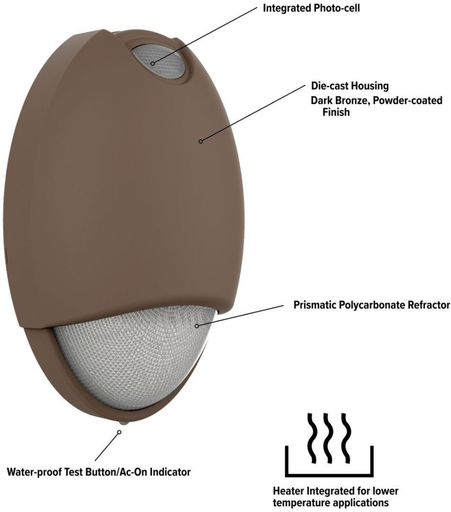

  • With Heater, Photo Control
