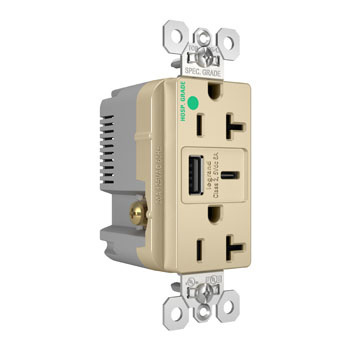

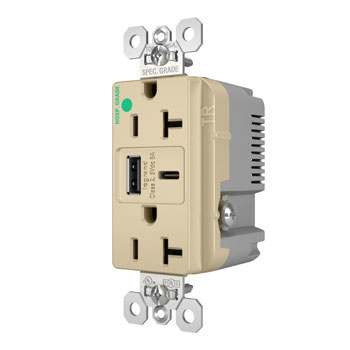

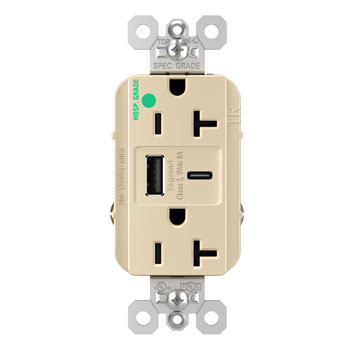

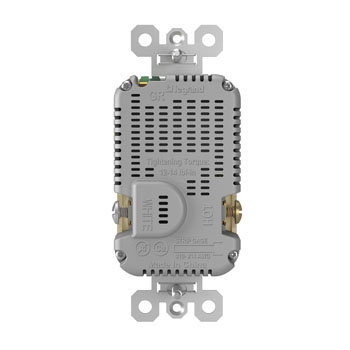

P&S TR20HUSBAC6I 20A 125V HG TR REC

Manufacturer: Legrand Pass & Seymour | Catalog # TR20HUSBAC6I | Codale Part # 4540254
$105.19 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
20A 125A Hospital Grade Tamper-Resistant REC+USBA+C FAST CHRG

Technical Information

Amperage
20 Amp
Applications
Commercial,Healthcare
Frequency
60 Hz
Grade
Hospital
Indoor Outdoor
Indoor
Mounting Type
Box
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Tamper-Resistant,USB-Charging
Type
Tamper-Resistant, Type-A, Fast Charge
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007209853
Color
Ivory
Product UPC
78500720985

Dimensions

Depth
1.425 Inch
Height
2.677 Inch
Warranty Length
1 yr
Width
1.693 in

Certifications and Compliance

Country of Origin
China
Features
  • Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
  • Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations.
  • Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
  • Type-A and Type-C ports carry a minimum rating of 10,000 insertions.
  • Slim design allows for installation in standard depth wall boxes.
  • Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.
