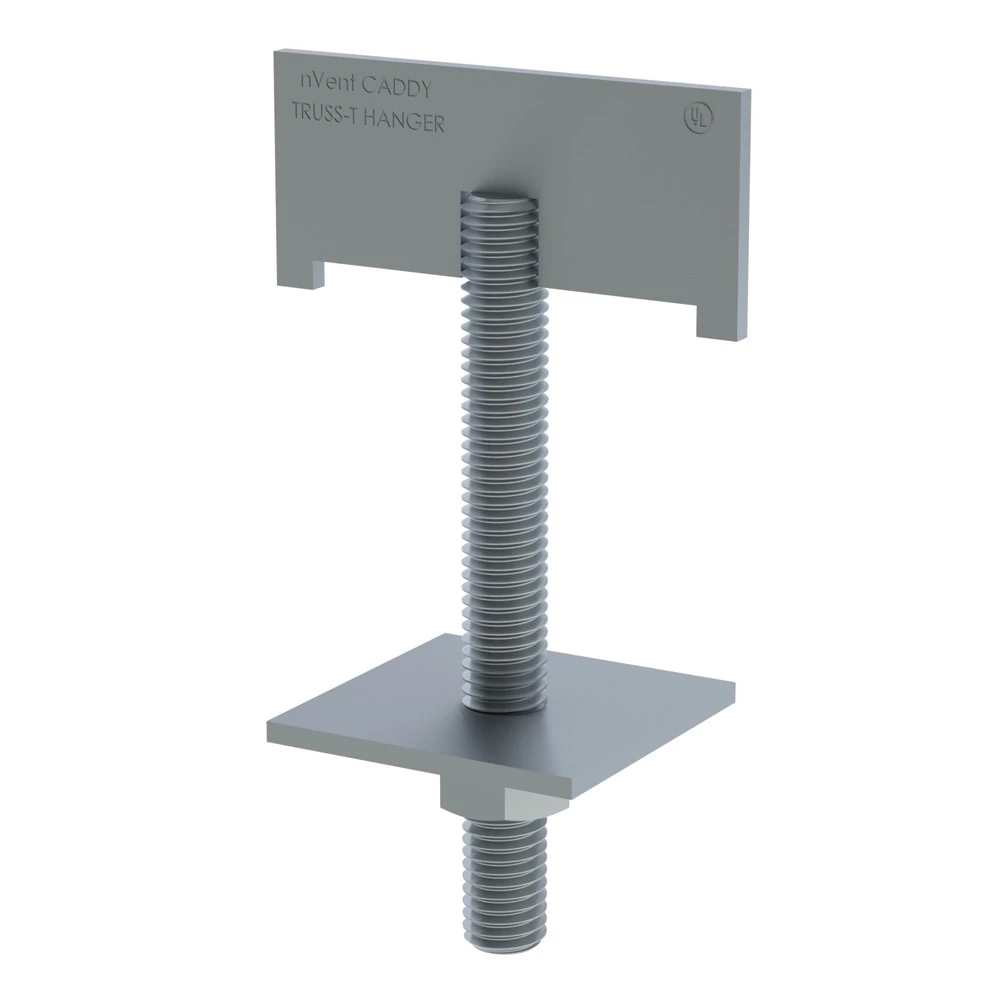

Caddy CTH037BC Caddy Truss-T Bar Joist Hanger, Bottom Chord, 3/8" Rod

Manufacturer: Caddy Fasteners | Catalog # CTH037BC | Codale Part # 4540408
$2,097.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
nVent CADDY Truss-T Bar Joist Hanger, Bottom Chord, 3/8" Rod

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration; Electrical Fixing and Fastening
Material
Steel
Size
3/8"
Type
Bar Joist Hangers

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
782856986546
Color
Gray
Finish
Pregalvanized
Product UPC
78285698654
Weight
0.18 kg
Features
  • Easily installs on the bottom chord of engineered open web bar joists from underneath, limiting overhead work
  • Innovative attachment effortlessly slides through the middle slot of open web bar joists and quickly locks into place when put under load
  • Installation of the complete, self-contained system can be accomplished with one hand and requires no additional special tools
  • The unique design of the nVent CADDY Truss-T hanger does not need to be tightened like a traditional beam clamp, providing greater adjustability and speed during system alignment

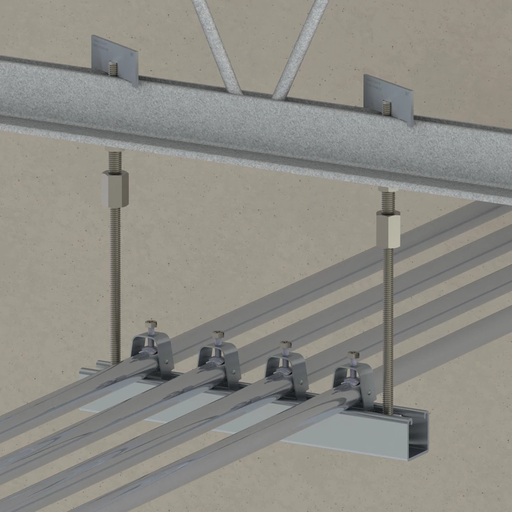

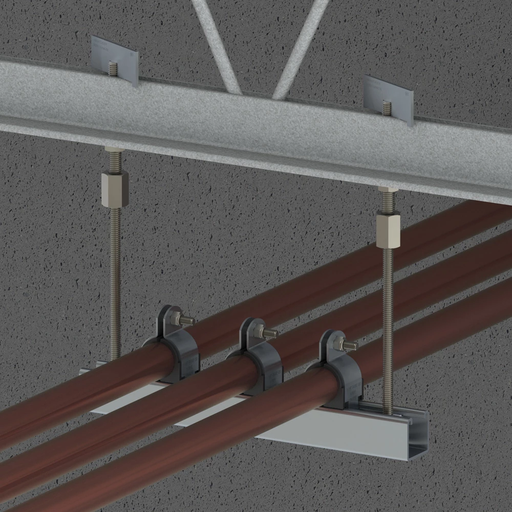

  • Prefabricated single pipe hanger and multi-pipe/tube trapeze assemblies can be prefabricated on the ground or in the shop, and easily hung by the installer
  • Concentrically loading the bar joist chord eliminates torsion and/or distortion, adhering to the strict rules established by the Steel Joist Institute (SJI)
  • The increased load carrying capacity results in the product being UL listed to support a maximum of 8\" Schedule 40 pipe
  • Included square washer with integrated threaded nut eliminates the need for loose hardware
Certifications
  • cUL ULC/ORD-C203
  • UL ANSI/UL 203
