Klein NCVT2PKIT Dual Range NCVT with Receptacle Tester Electrical Test Kit

Manufacturer: Klein Tools | Catalog # NCVT2PKIT | Codale Part # 4540654
$33.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

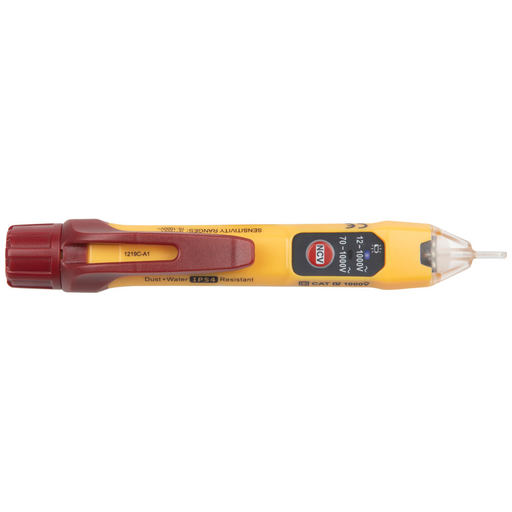

The NCVT2PKIT from Klein Tools includes a dual-range, non-contact voltage tester as well as a receptacle tester. The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The receptacle tester will troubleshoot standard 120V AC grounded outlets.

Technical Information

Applications
Detects And Indicates Low Voltage And Standard Voltage; Detects Most Common Wiring Problems In Standard Receptacles
Battery Life
142 hr
Battery Type
2 X AAA
Frequency
50 Hz
Material
Polycarbonate
Number of Rows
2
Type
Dual Range
Voltage
1000 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693274
Product UPC
09264469327
Weight
0.299 lb

Dimensions

Depth
9.63 Inch
Height
1.1 Inch
Length
5.8 Inch
Overall Length
5.8 in
Width
0.9 in

Certifications and Compliance

Country of Origin
China
Features
  • Kit contains a non-contact voltage tester and receptacle tester
  • Dual range NCVT-2P automatically detects and indicates low voltage range and standard voltage (48-1000V AC)

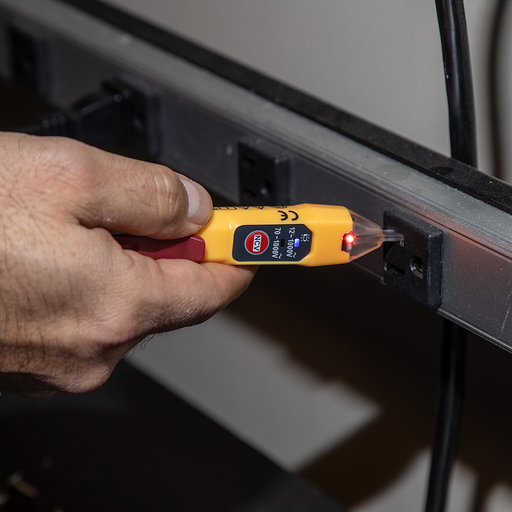

  • NCVT-2P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
  • NCVT-2P is a lightweight, compact tool with pocket clip for convenient storage and quick access
  • CAT IV 1000 Volt rating provides expanded operation and protection

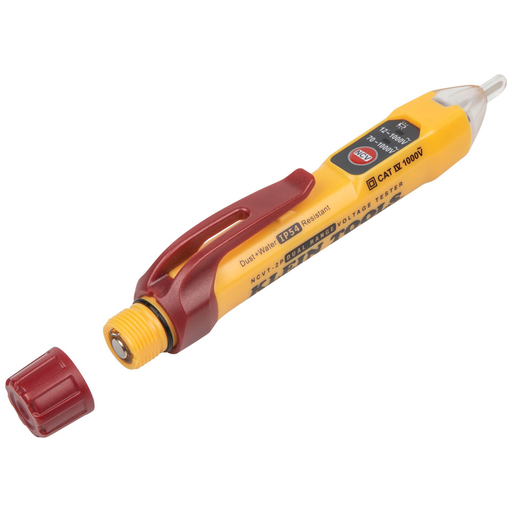

  • Screw-thread battery cap with O-ring ensures protection against dust and water ingress for the NCVT-2P

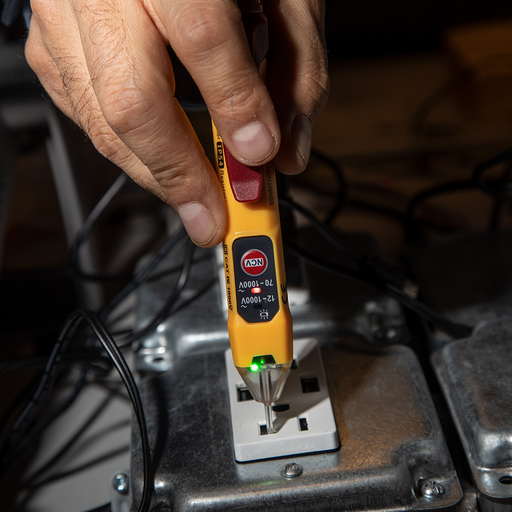

  • Receptacle Tester is designed to detect the most common wiring problems in standard receptacles
  • Conditions the Receptacle Tester indicates: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed
  • Two Distinctive Modes on NCVT-2P: 70 to 1000V AC and 12 to 1000V AC
Warnings
  • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
  • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
