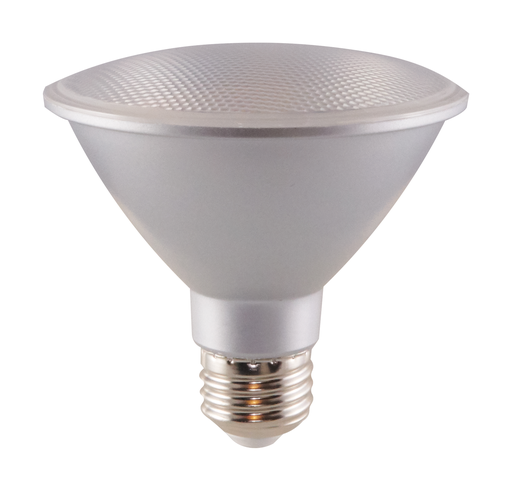

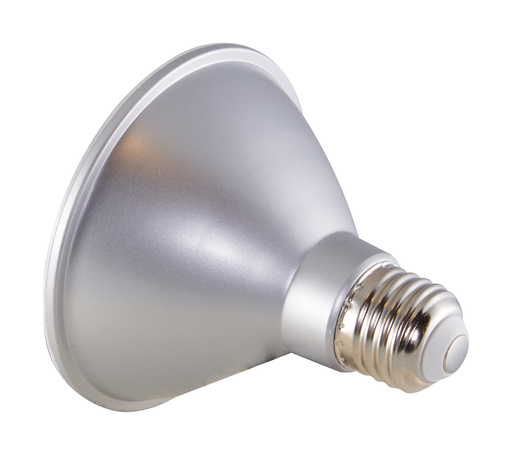

Product image for Satco S29416 12.5 Watt; PAR30SN LED; 3000K; 40 deg. Beam Angle; Medium base; 120 Volt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Email

Satco S29416 12.5 Watt; PAR30SN LED; 3000K; 40 deg. Beam Angle; Medium base; 120 Volt

Manufacturer: SATCO Lighting | Catalog # S29416 | Codale Part # 4540925
$17.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
12.5 Watt PAR30SN LED Lamp - 3000K - 40 Degree Beam Angle - Medium Base - 120 Volts

Technical Information

Amperage
0.104 Amp
Applications
For Indoor/Outdoor
Average Rated Life
25000 hr
Base
Medium
Beam Angle
40
Beam Spread
40
Bulb Shape
PAR30SN
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Dimmable?
Yes
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Clear
Lens Material
Thermo Plastic
Lumens
1,000 Lumen
Material
Thermoplastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
3.7 in
Standard
CULus
Technology Type
LED
Temperature Rating
-20 to 45 degrees C
Type
Dimmable
Voltage
120 Volt
Wattage
12.5 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923294167
Environmental Conditions
Enclosed Fixture Rated, Wet Location Rated
Finish
Silver
Housing Color
Silver
Product UPC
04592329416
Weight
0.35 lb

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Features
  • Silver colored reflector
  • Wet location rated
  • Dimmable
  • Warm White color temperature
  • Long life -- 25000 average rated hours
  • 15-watt fluorescent equivalent and 75-watt incandescent equivalent
Accessory Products
  • 6631
  • 6674
  • 66ELV
  • 86/103
  • ADTP703TU
  • AYCL-153P
  • CTRP-253P
  • DAL06P-C2
  • DSE06
  • DSL06-1LZ
  • DVCL-153P
  • DVRP-253P
  • DW6HD
  • IPE04-1L
  • IPL06
  • LECL-153PH
  • MA-PRO
  • MACL-153M
  • MSCL-OP153M
  • NTCL-250
  • NTRP-250
  • PD-6WCL
  • RH703PTUTC
  • RHCL450PTC
  • RRD-6CL
  • SCL-153P
  • SUF7
  • TAL06P-C2
Replaced By Products
  • S9086
  • S9416
