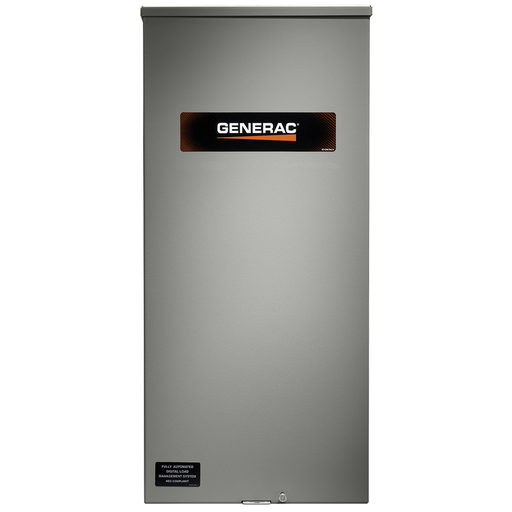

Product image for Generac RTSN200G3 Guardian 200 Amp 120/208 Volt Automatic Transfer Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Generac RTSN200G3 Guardian 200 Amp 120/208 Volt Automatic Transfer Switch

Manufacturer: Generac Power Systems | Catalog # RTSN200G3 | Codale Part # 4541185
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Generac Automatic Transfer Switches are designed for use with three phase generators that utilize an Evolution or Nexus Controller. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.

Technical Information

Amperage
200 Amp
Applications
For Residential, Commercial, Light Industrial
Number of Poles
2 Pole
Type
Automatic, Open-Type
Voltage
120 Volt

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471615180
Color
Gray
Housing Material
Steel
Product UPC
69647161518
Weight
20 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
Yes
Features
  • 200 Amp Transfer Switch 120/208 3Ø
  • Generac automatic transfer switches are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked powder paint
  • Heavy duty Generac contactor is a UL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
  • Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
  • When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available
  • Cycles power on and off as needed for different appliances
  • Switch is covered by a 5 year limited warranty
  • Three-phase, 120/208-volt; UL listed transfer switch
  • Five year limited warranty
Certifications and Standards
  • UL Listed
