SATCO S11237 5 Watt JCD LED Lamp -

Manufacturer: SATCO Lighting | Catalog # S11237 | Codale Part # 4541502
$21.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

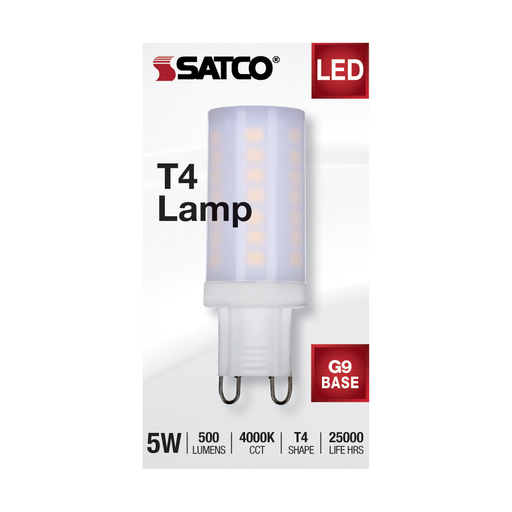

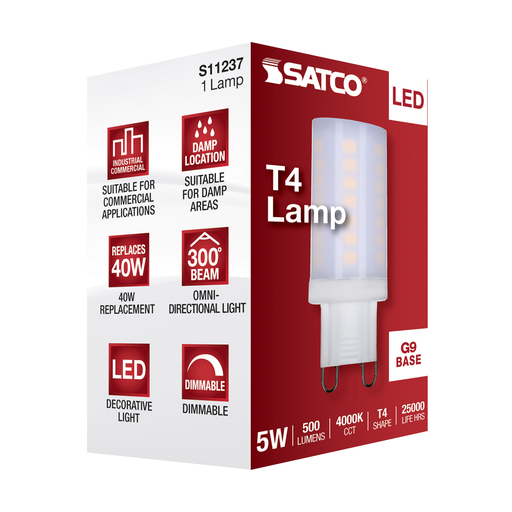

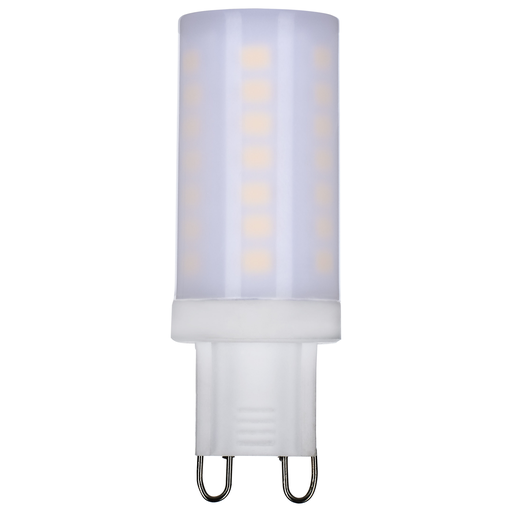

Transform your surroundings with SATCO|NUVO's S11237 5-watt, T4, G9-base, Halogen replacement lamp, engineered for optimal energy efficiency and affordability. With a CCT of 4000K and emitting a 300-degree omni-directional light, this lamp is ideal for accentuating various settings. Find the perfect lighting solution for chandeliers, display lighting, landscapes, displays and more with the brilliantly focused light of this lamp, tailored to meet your needs.

Technical Information

Amperage
0.042 Amp
Average Rated Life
25000 hr
Base
G9 Double Loop
Beam Angle
300 DEG
Beam Spread
300
Color Temperature
Cool White
Correlated Color Temp
4000 K
Dimmable?
Yes
Incandescent Equivalent
40 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Frost
Lens Material
Plastic
Lumens
500 Lumen
Material
Ceramic,Polycarbonate
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
2.13 IN
Technology Type
LED
Type
LED
Voltage
120 Volt
Wattage
5 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923112379
Finish
Frosted
Housing Color
White
Product UPC
04592311237
Weight
0.06 lb

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Installation Notes
  • Not for use in vapor tight fixtures. For proper ventilation, original protective glass shield for halogen lamps should be removed during installation.
Features
  • 300 degree Omni-Directional Light
  • Frosted Lamp Finish
  • 4000K CCT
  • Damp Location Rated
  • T4, Double Loop G9 Base
  • Enclosed Fixture Rated
  • 25,000 Life Hours
