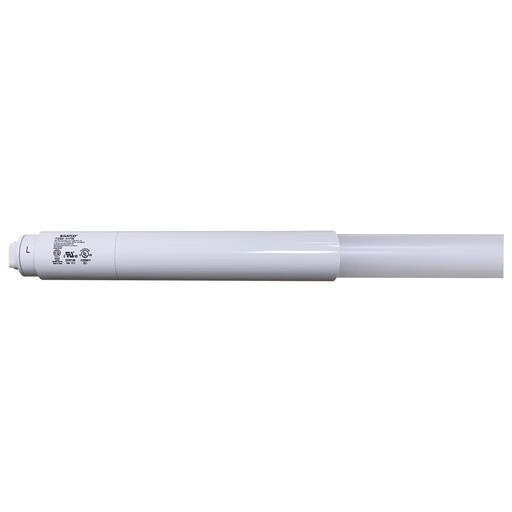

SATCO S11755 38T8/LED/96-CCT/BP/R17

Manufacturer: SATCO Lighting | Catalog # S11755 | Codale Part # 4541558
$57.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
38 Watt T8 LED - Recessed Double Contact HO/VHO Base - CCT Selectable - Type B - Ballast Bypass - PET Shatterproof Coated - White Finish - 96 Inches - 120-277 Volt

Technical Information

Amperage
0.317-0.137 Amp
Applications
Indoor Lighting
Average Rated Life
50000 hr
Beam Angle
180 DEG
Beam Spread
180
Color Temperature
Cool White To Daylight
Correlated Color Temp
Cool White to Daylight
Incandescent Equivalent
150 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lamp Type
LED
Lens Color
Frost
Lens Material
Glass
Lumens
5,300 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
38 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117558
Finish
White
Housing Color
White
Product UPC
04592311755
Weight
0.88 lb

Dimensions

Length
96 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Direct replacement for fluorescent T8 or T12 lamps
  • Ballast bypass - UL Type B installation
  • NSF certified - P.E.T. coated, shatter resistant glass tube
  • Compatible with S8002 Emergency Driver
  • 5-Year warranty
  • CCT Selectable
  • Rated for 50,000 hours
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
Includes
  • Each master case contains a 10 pack of item 80-984 (LED T8 Support Clip.)
