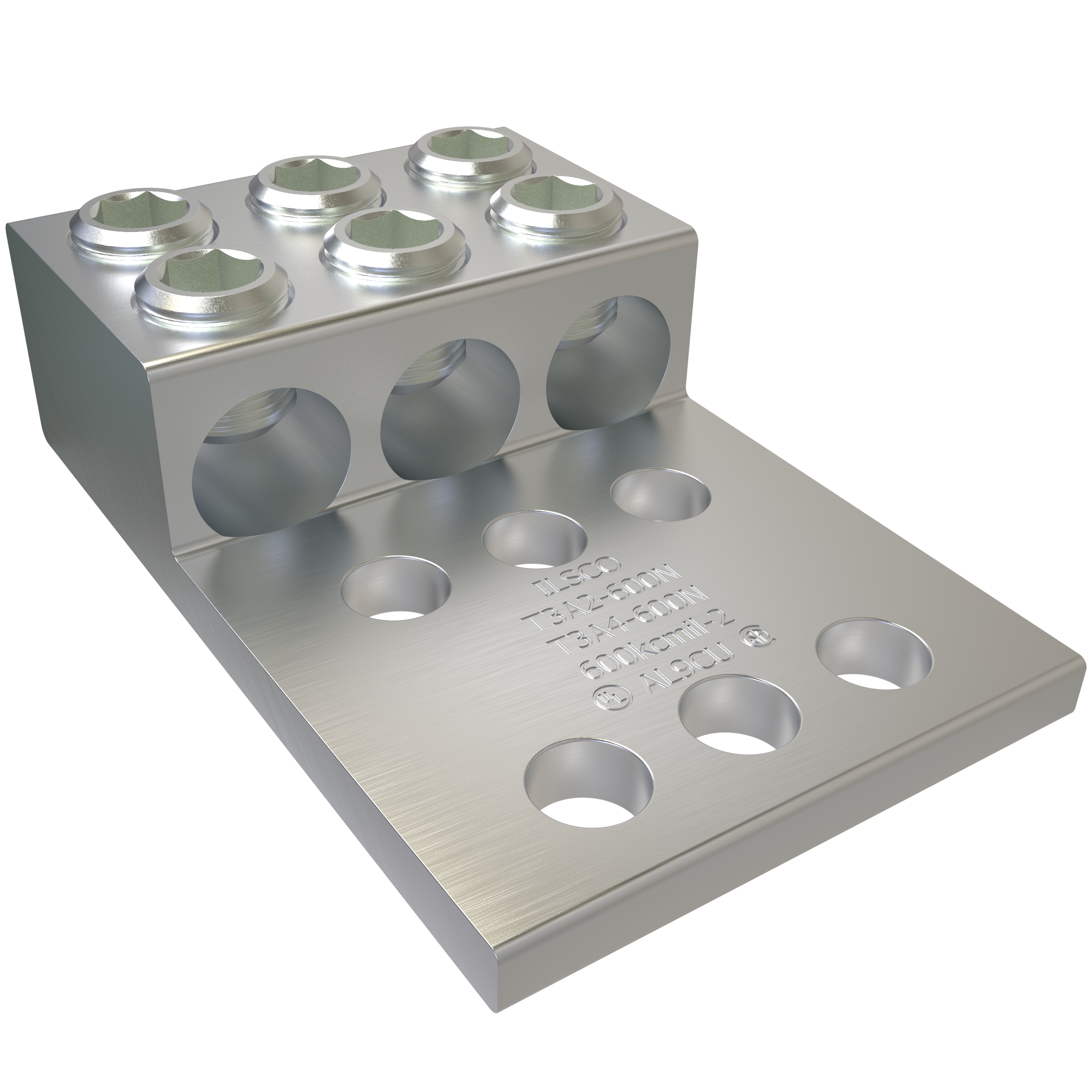

Product image for Ilsco T3A2-600N Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-600N
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco T3A2-600N Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-600N

Manufacturer: Ilsco | Catalog # T3A2-600N | Codale Part # 4541584
$196.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Three Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,6 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 3 conductors, 3 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Terminating Connector
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
3
Number of Holes
6 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
T3A
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669900576
Color
Silver
Finish
Tin Plated
Product UPC
78366990057
Weight
1.132 lb

Dimensions

Height
1-1/2 Inch
Length
5-1/2 Inch
Width
3.5 in
