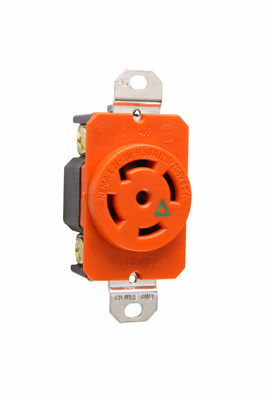

Pass & Seymour IGL2130-R Turnlok Single Receptacle, 5wire, 30amp 3phase 120/208V Isolated Ground

Manufacturer: Legrand Pass & Seymour | Catalog # IGL2130R | Codale Part # 4541786
$175.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Turnlok Single Receptacle 5wire 30amp 3phase 120/208volt Isolated Ground

Technical Information

Amperage
30 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Material
Thermoplastic
NEMA
L21-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
3.3"
Type
Single Receptacles
Voltage
120 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007213065
Color
Orange
Product UPC
78500721306
UNSPSC
39121403

Dimensions

Depth
1.28 Inch
Height
2.42 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • 140 joules of energy absorption in each of thethree modes.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage inall 3 modes, 500V.
  • LED indicator light.
  • Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25: C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes : equally.
  • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
  • Federal Spec Listed
