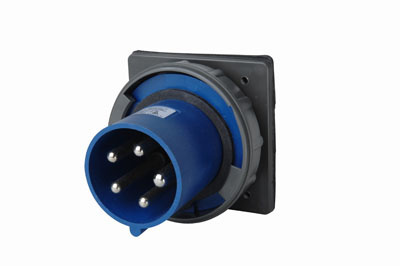

P&S PS560B9W P/S INLET 5W 60A 3PH 1

Manufacturer: Legrand Pass & Seymour | Catalog # PS560B9W | Codale Part # 4541802
$678.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
Four pole, Five wire, Pin and Sleeve Inlet. 60 amp, 3Y, 120/208 volt.

Technical Information

Amperage
60 Amp
Applications
Commercial
Conductor Size
2 AWG
Material
Thermoplastic
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
6.75"
Type
Pin & Sleeve North American Watertight Inlet
Voltage
120 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007617290
Color
Gray
Product UPC
78500761729
UNSPSC
39121403

Dimensions

Height
4-1/2 Inch
Length
4-1/4 Inch
Width
4.5 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS
Country of Origin
USA
Features
  • Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
  • Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
  • Nylon construction for highimpact and corrosion resistance.
  • Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
  • Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
  • Natural-rubber grommets provide watertight protection at cable entry.
  • Combination-head screws for added convenience and quick installation.
  • Revolutionary, hinged cord grip for durable performance and ease of installation.
  • Cover with integral neoprene gasket provides watertight seal.
Certifications
  • cULus Listed
